VT Disc Seeders(Drills)
- Narrow transport width
- Effortless maintenance with wing-tilt feature, providing easy access to all units
- Quick seed and fertilizer depth adjustment

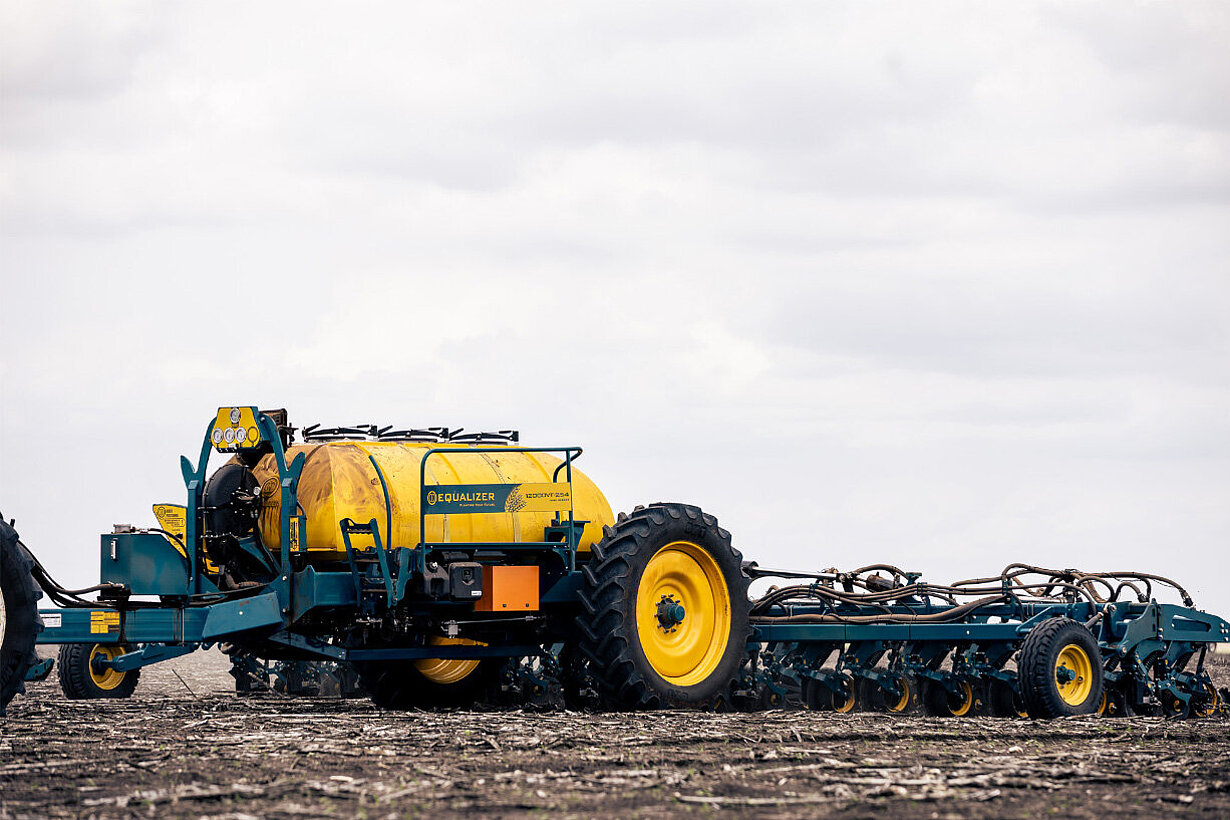

The VT Disc Seeder(Drill) provides dry and/or liquid fertilizer versatility on a large-wheeled, low-impact toolbar and the VT parallel link opener. Standard seed brake, quick depth adjustment, and versatile coulter and closing wheel options ensures optimal penetration and emergence.
VT Disc Seeder(Drill) Benefits
- Narrow transport width 3.5m (11.5ft).
- 3m (120”) main wheel track.
- Active wing downforce via a closed loop system with an accumulator, no constant flow hydraulics.
- Forward positioned wing wheels add stability in the wings in varying soil conditions. Three on-frame tanks with a total volume of 6 150L (1 625gal) which can be set up for either liquid or granular product.
- Large wheels for less soil compaction and superior flotation (providing the ability to continue planting in softer soil conditions where smaller wheels tend to bulldoze or create compaction layers).
VT Disc Seeder(Drill) Overview
Product Range
-

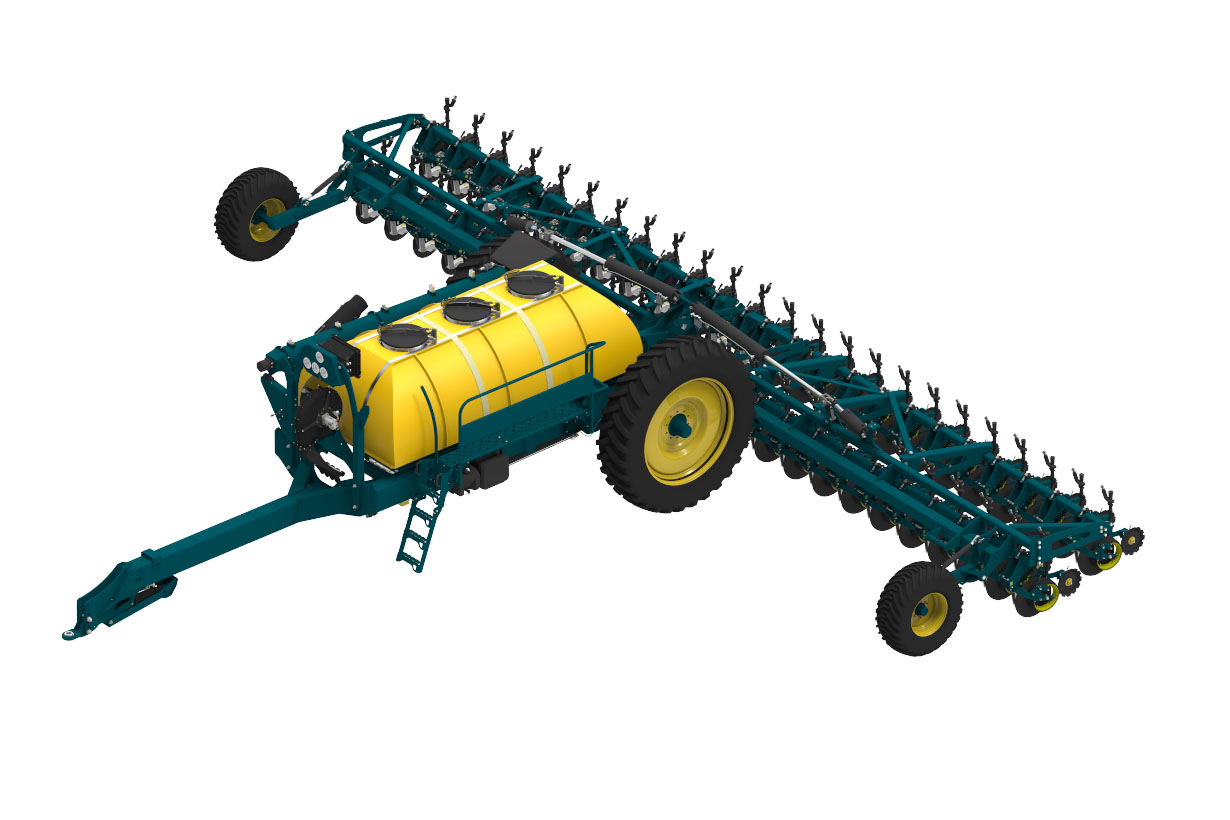

12000VT - 254 Planting Position
-

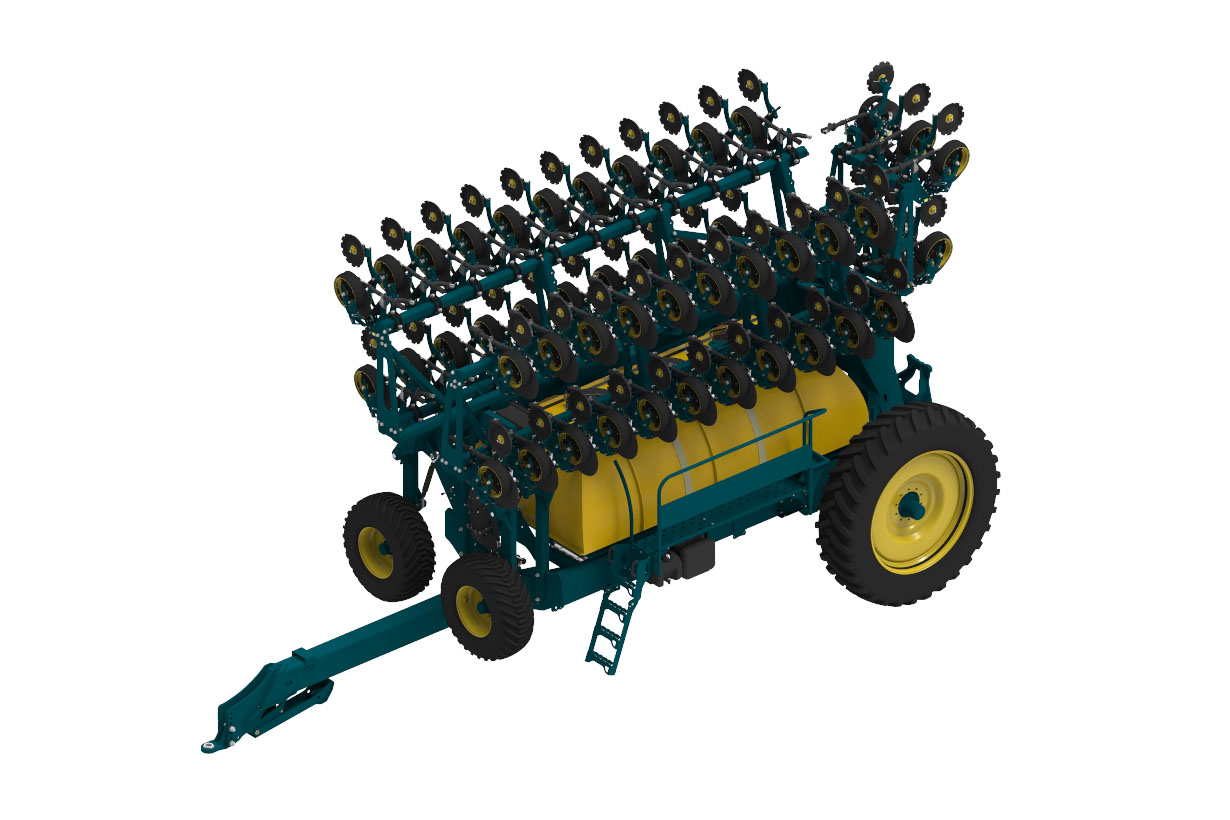

12000VT - 254 Transport Position
-

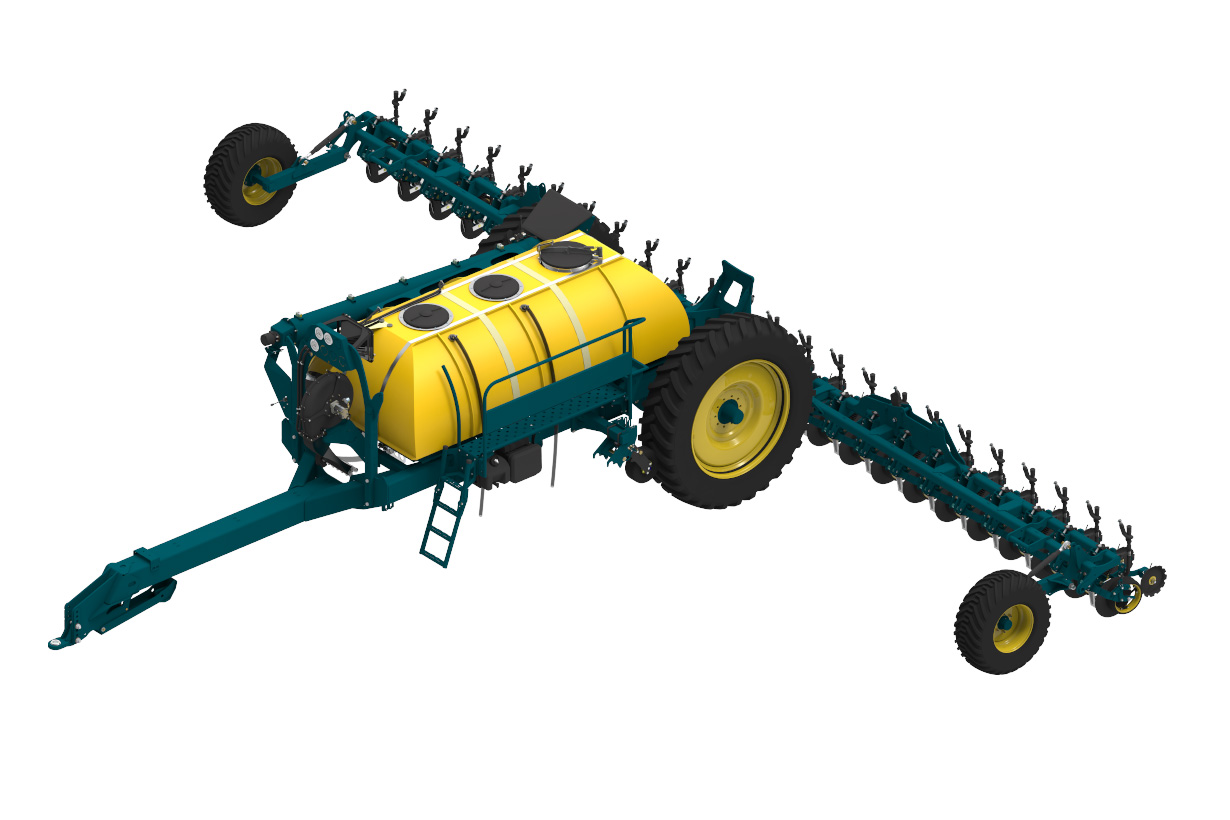

12000VT - 508 Planting Position
-

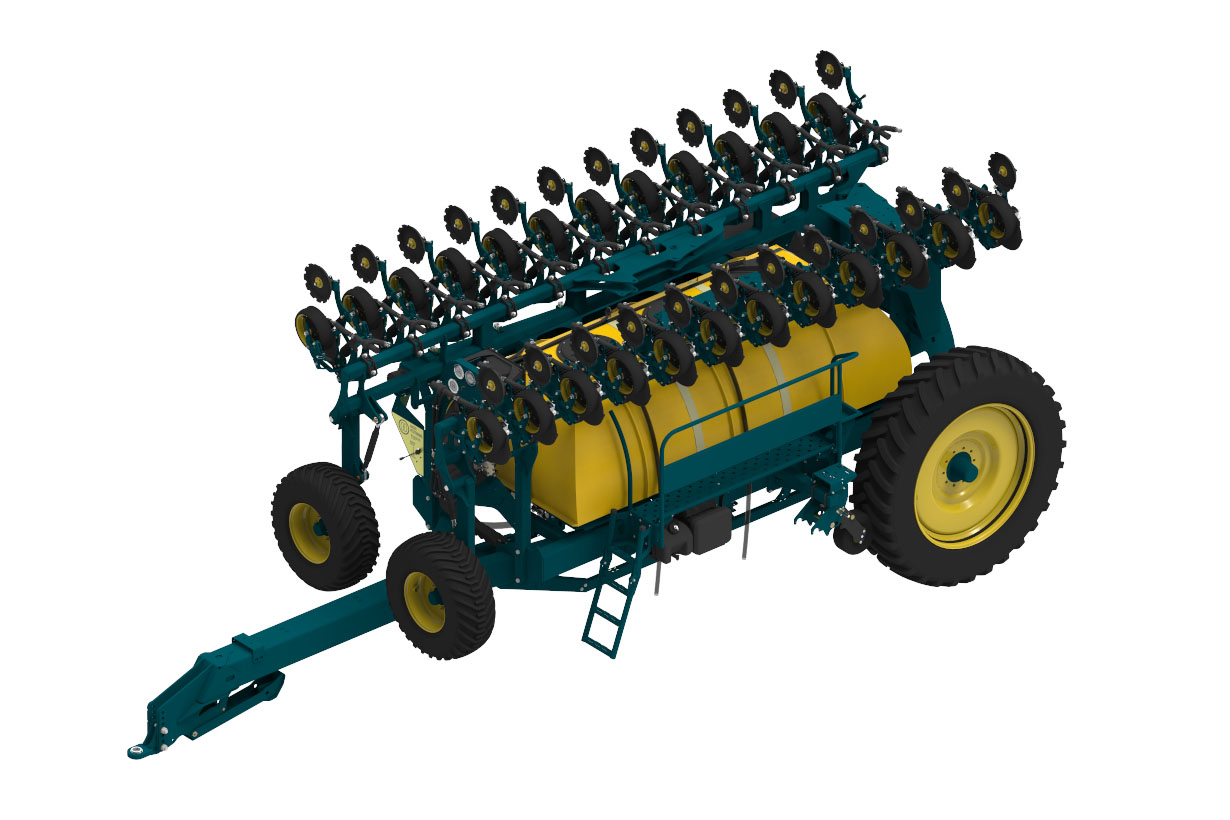

12000VT - 508 Transport Position

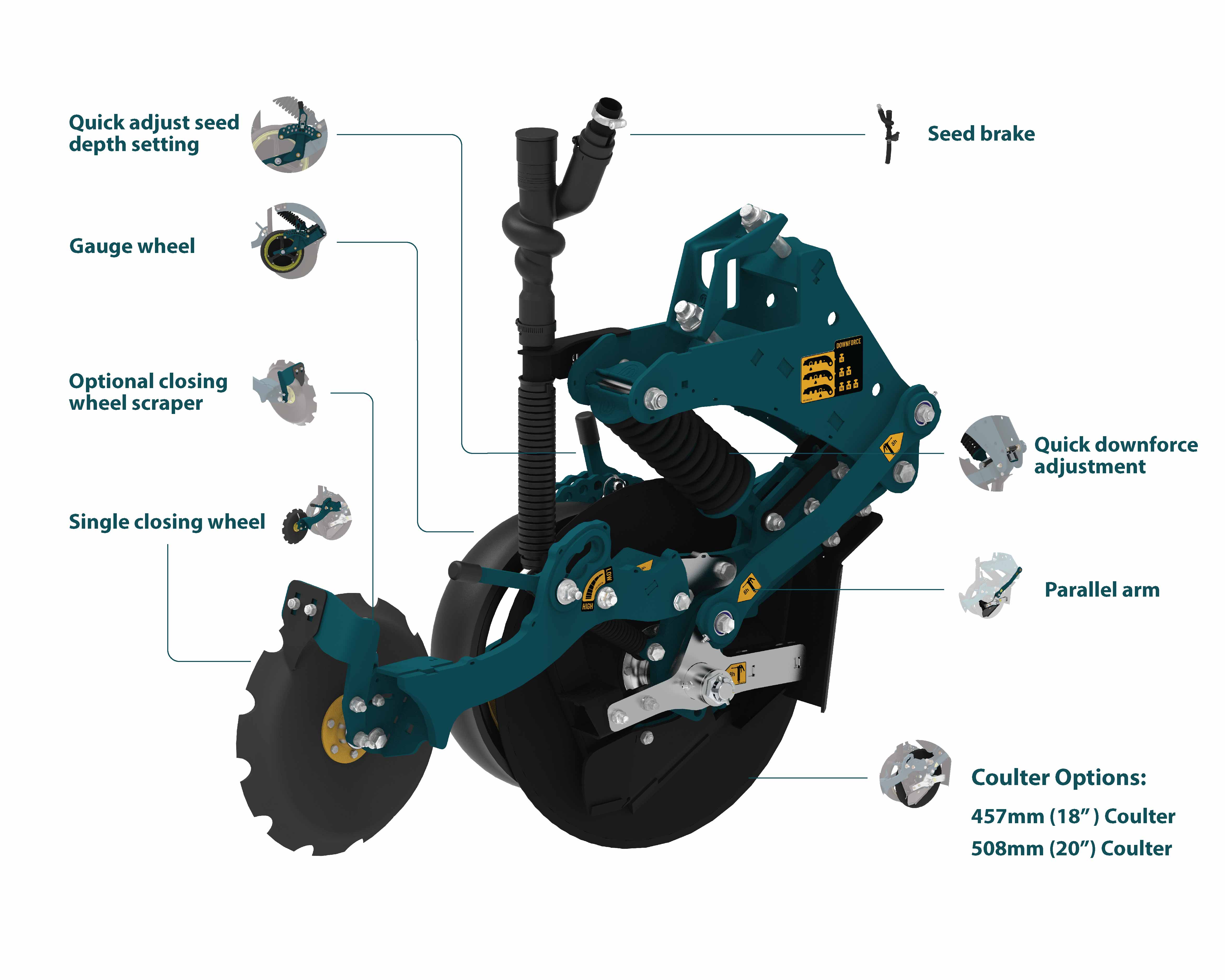

The VT (Drill) Unit
Designed for seeding of small grains as well as soybeans on prepared (PRE-TILLED) soils, but also moderate to soft unprepared (NO-TILL) soils.
Standard Unit Features
Seed and fertilizer depth placement = 16 increments, 5 - 80mm (¼” - 3”) depending on soil type.

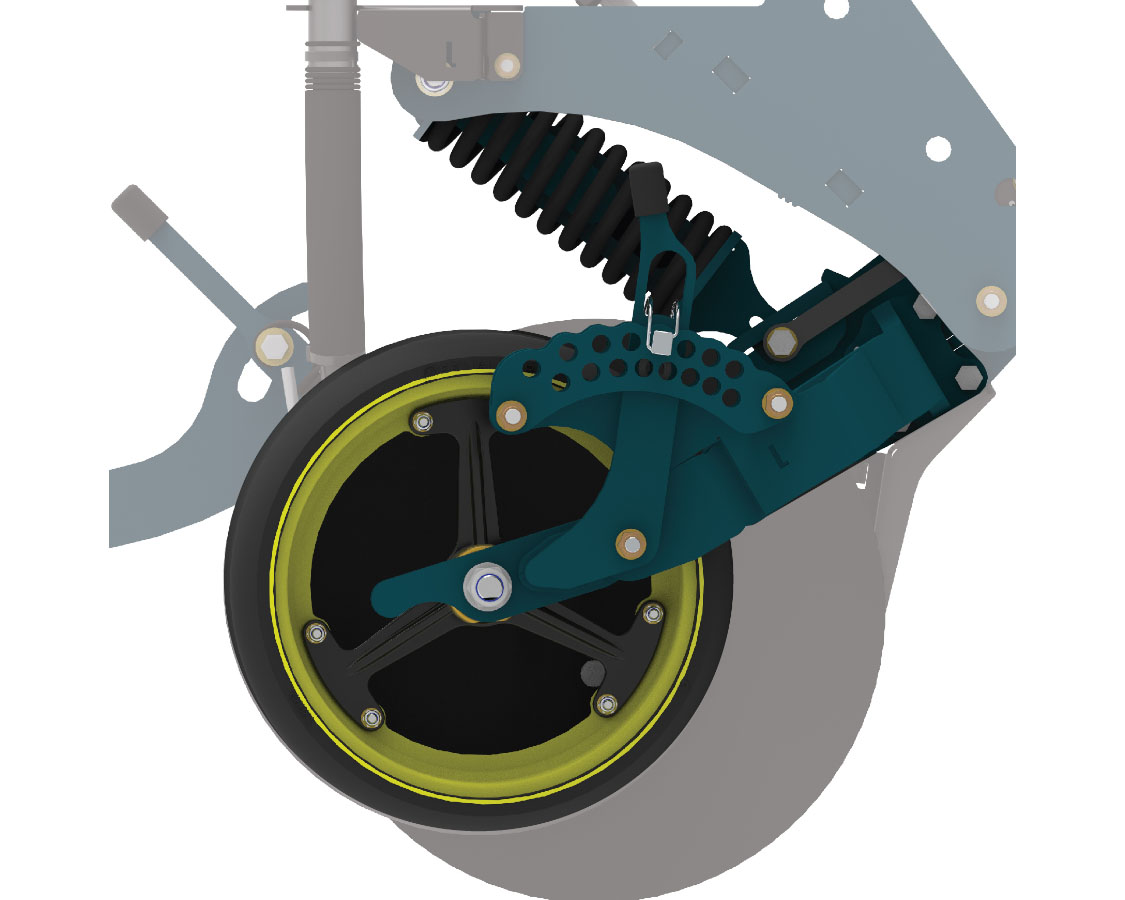

Large gauge wheel combined with spring downforce with very flat force curve for superior flotation

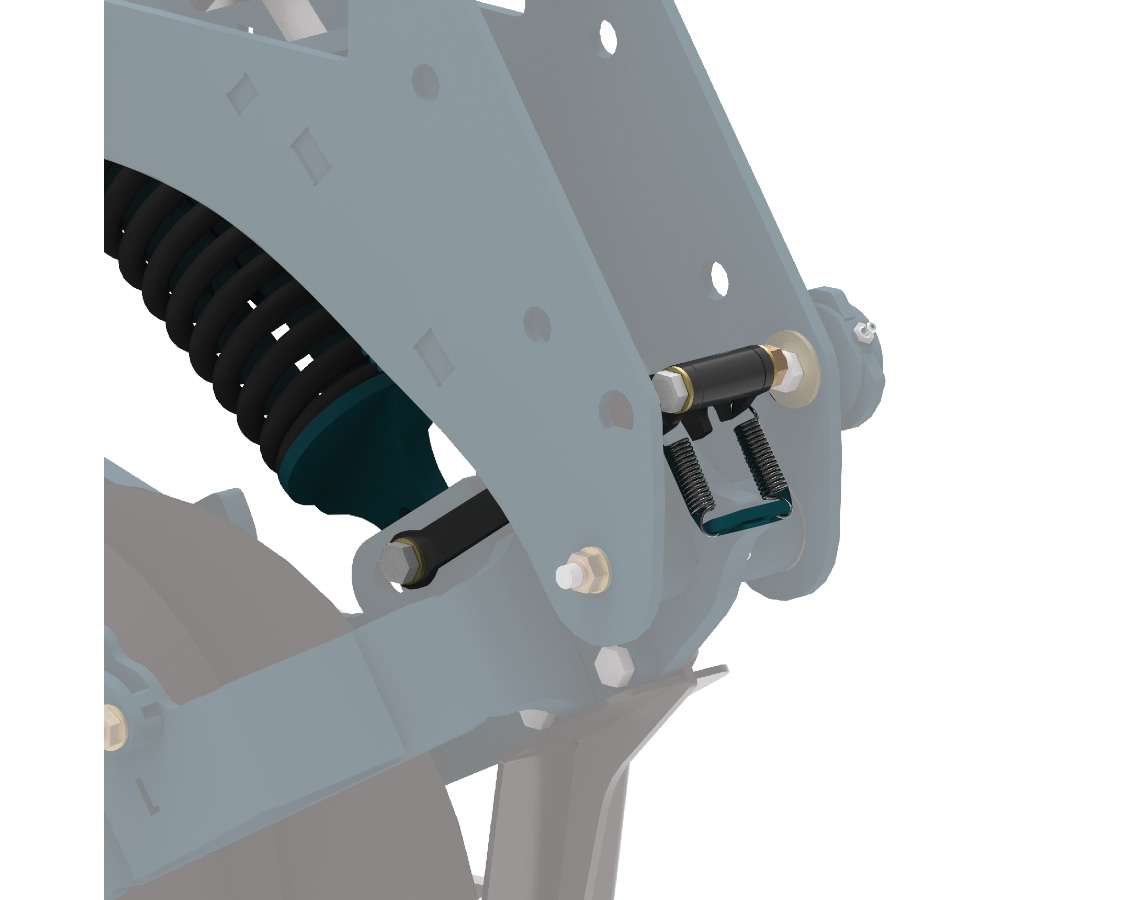

No tools required to adjust the unit downforce

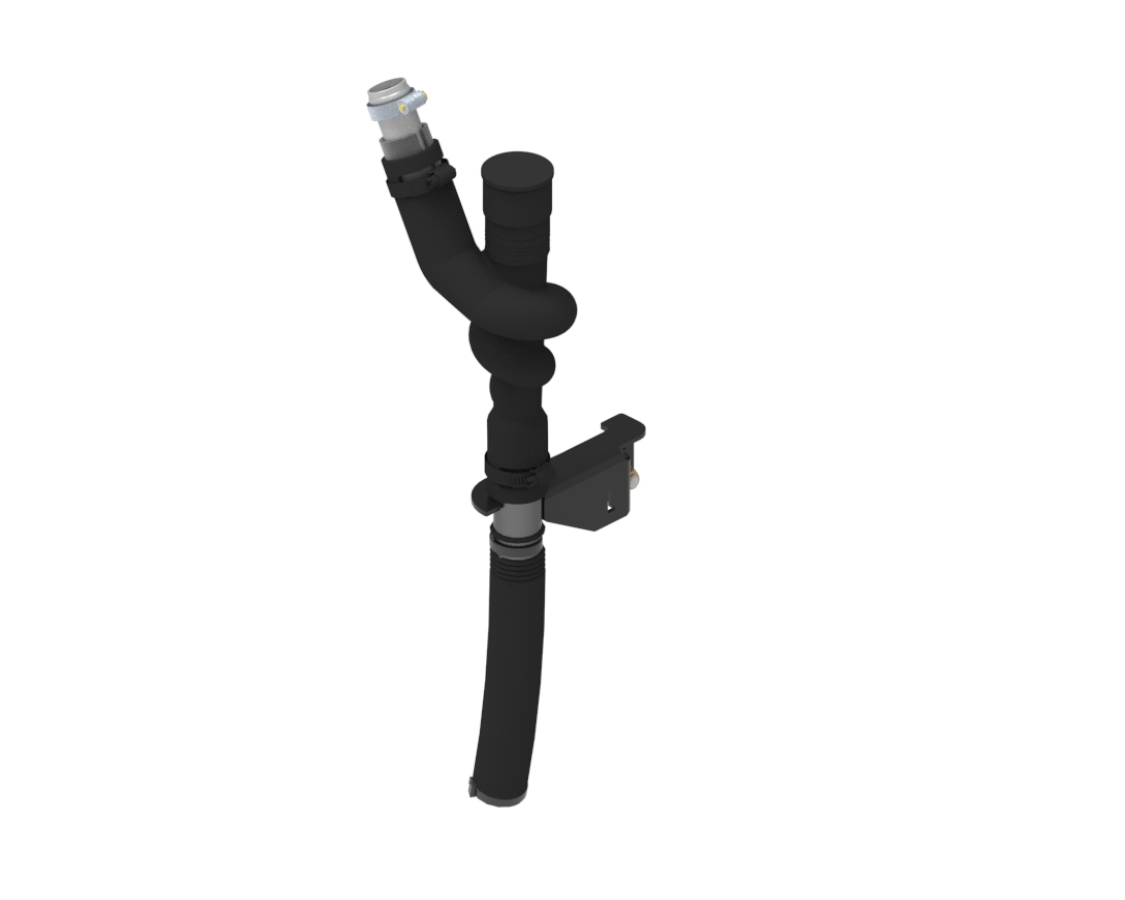

Release excess air to allow for optimum air and seed flow, resulting in consistent seed placement
Works well in most conditions. Superior in tougher no-till conditions.

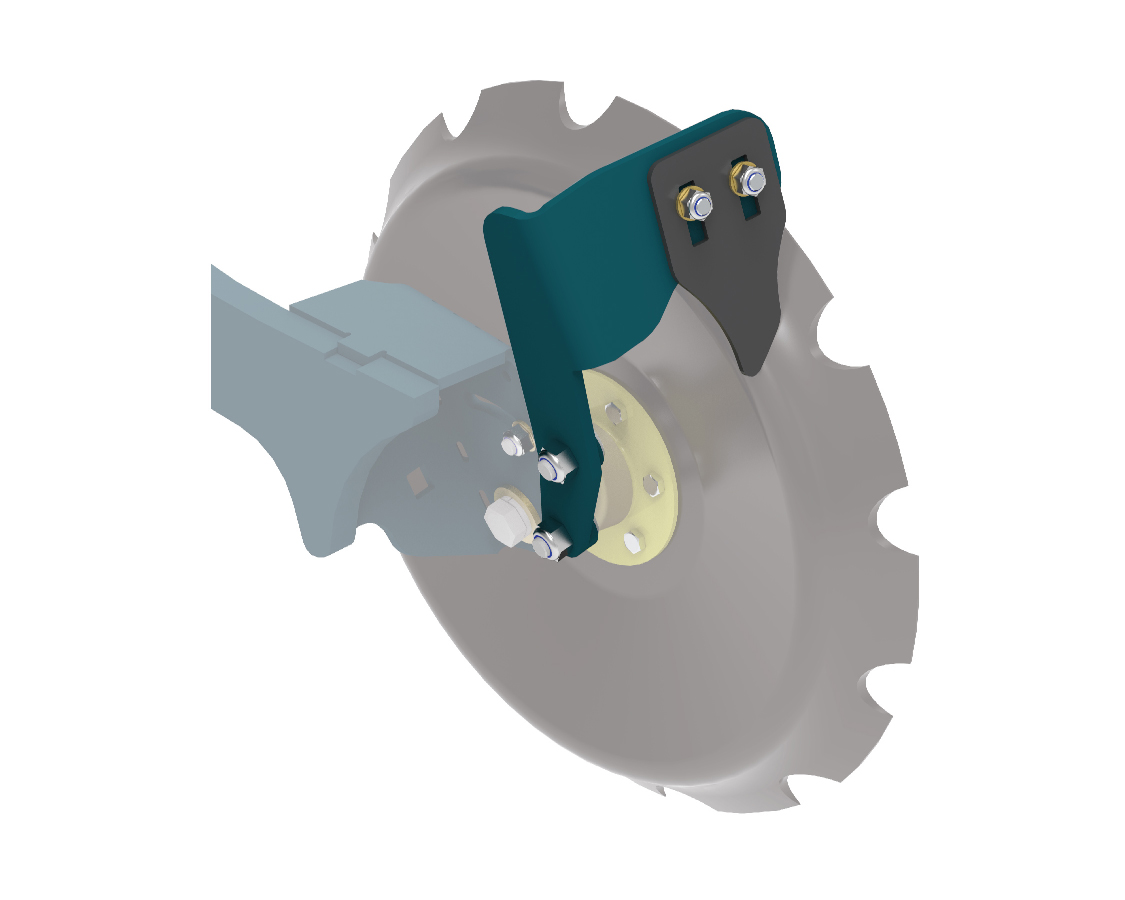

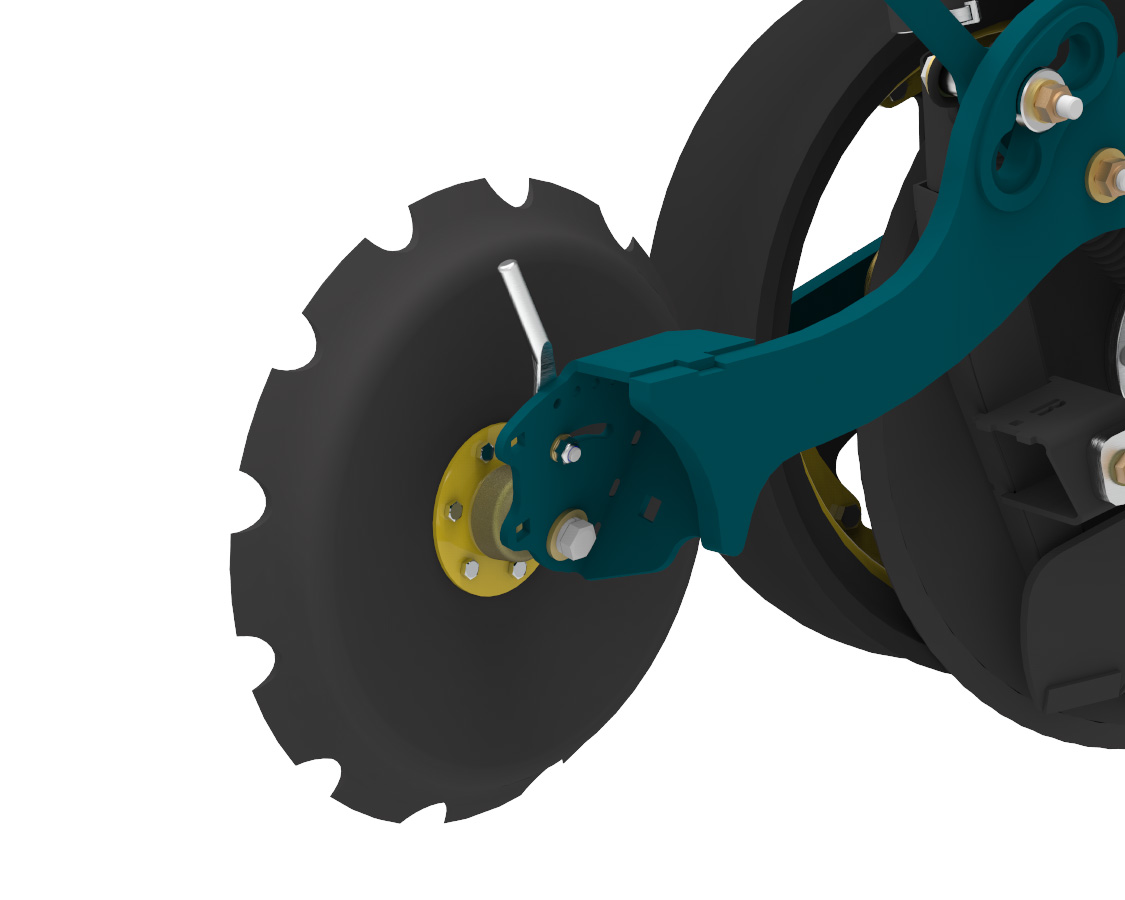

To remove mud build up in sticky conditions

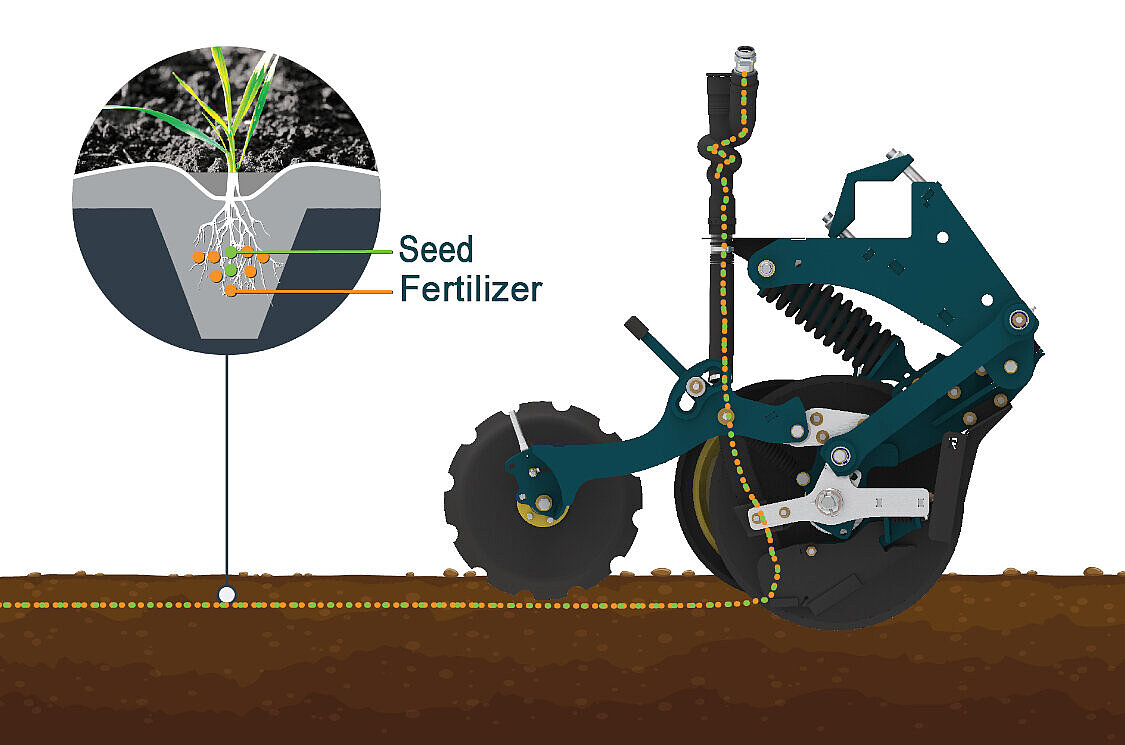

Combined Fertilizer & Seed Placement

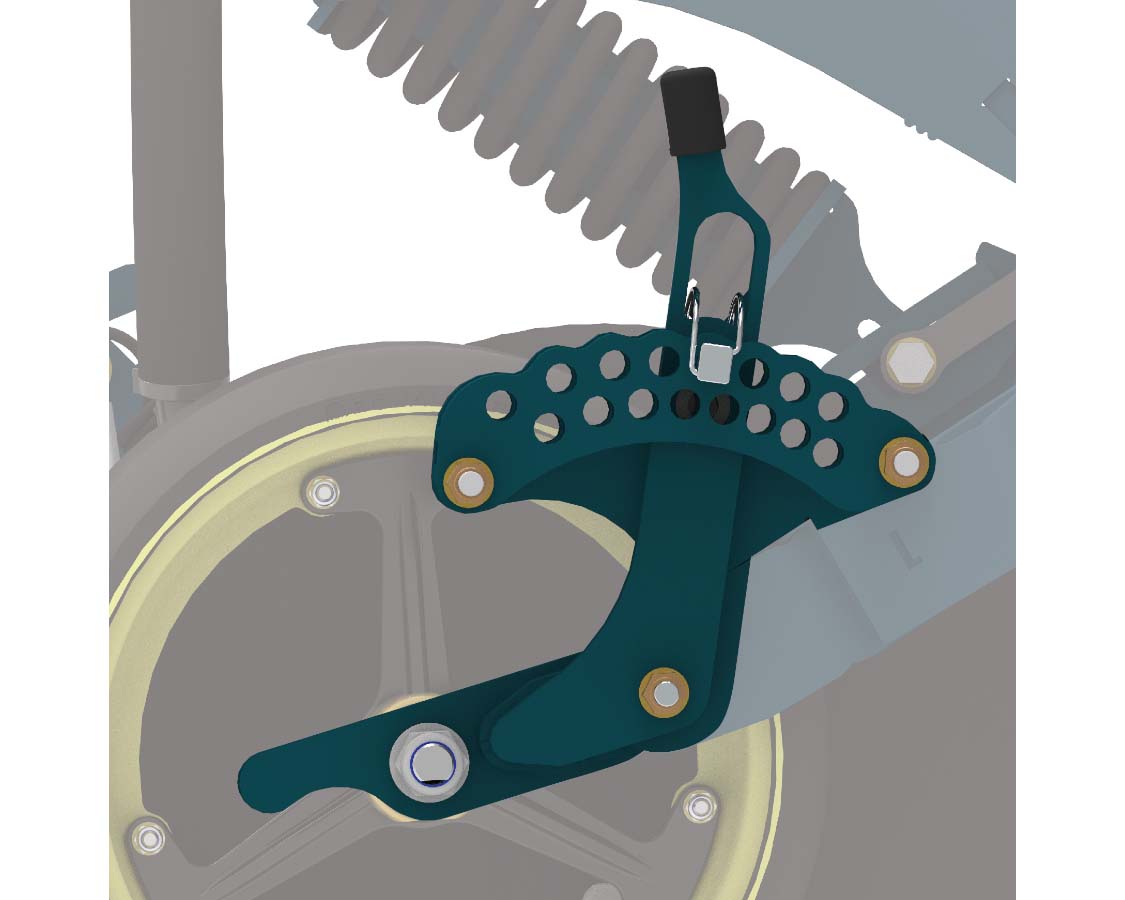

- Quick adjust SEED depth settings
- Quick SEED and FERTILIZER depth placement from 5 - 80mm (¼” - 3”)
- Unique parallel arm to keep seed boot parallel to the ground

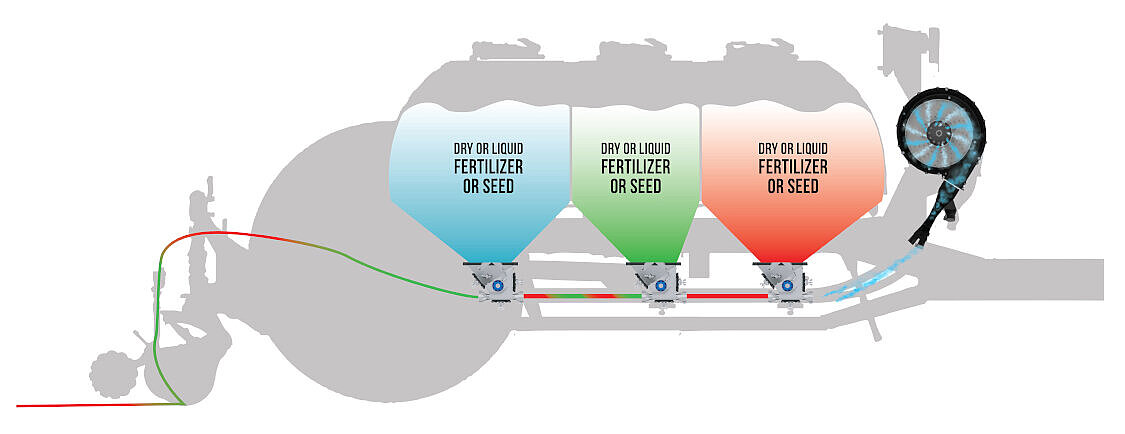

Seed & Fertilizer Distribution
- The polyethylene tanks are suitable for both liquid and granular fertilizers
- When equipped with liquid tanks, Banjo tank fittings, manifolds, valves, and three-stage filters are standard

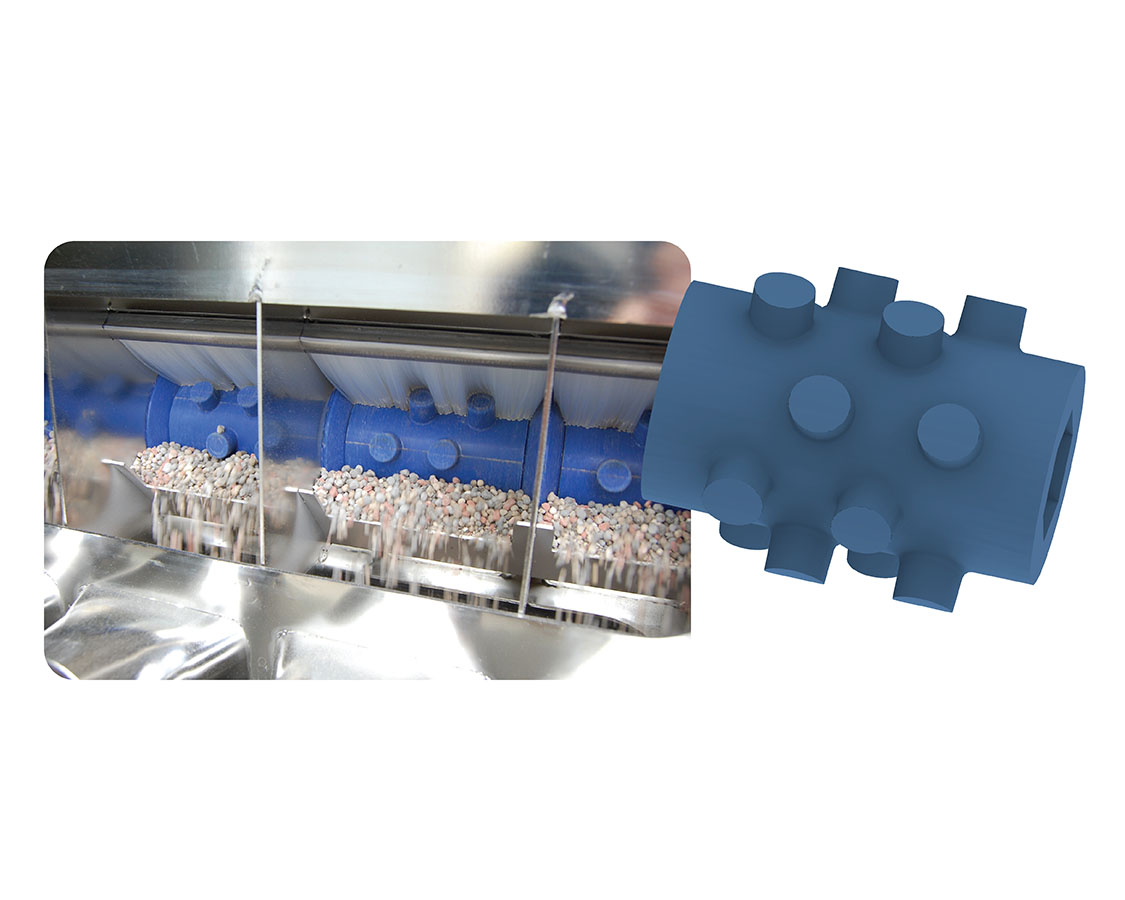

Granular Fertilizer Meterbox
- Stainless steel with self-cleaning poly meter roller
- Accurate, versatile and simple with effortless calibration
- One metering roller for all Fertilizer & Seed types and sizes
Stainless steel metering units with individual line metering. This means each divider head has its own individual meter roller and there is only one divider head between the row unit and the metering roller which ensures maximum accuracy with an air seeder as eliminates the possibility of variation between sections.

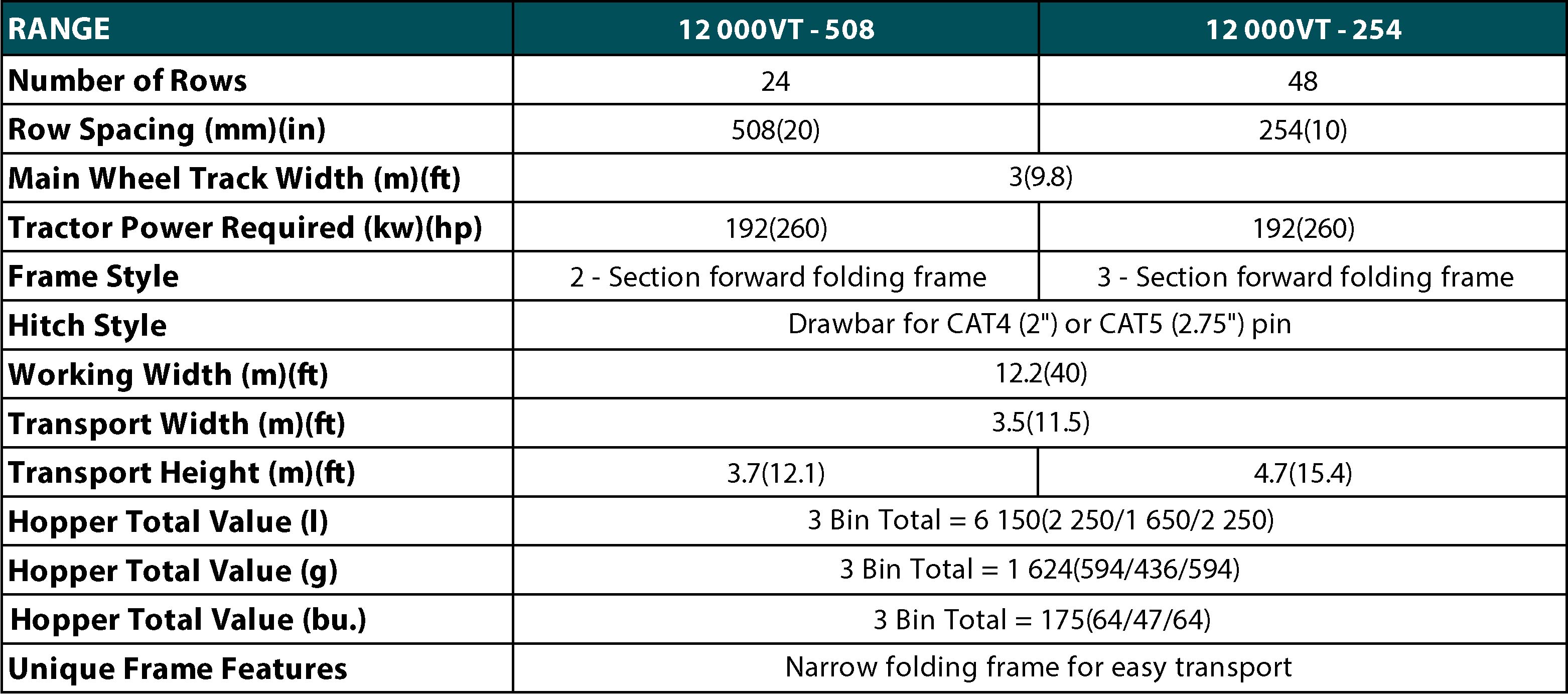

Product Range Specifications
Seeds: Wheat, barley, canola, soybeans, lupins, etc.
