CII Narrow Planters
- Planter sizes range from 8 to 24 rows, with row spacing options from 508mm to 914mm
- Conventional planter that can also work in moderate no-till conditions
- Granular and liquid fertilizer options

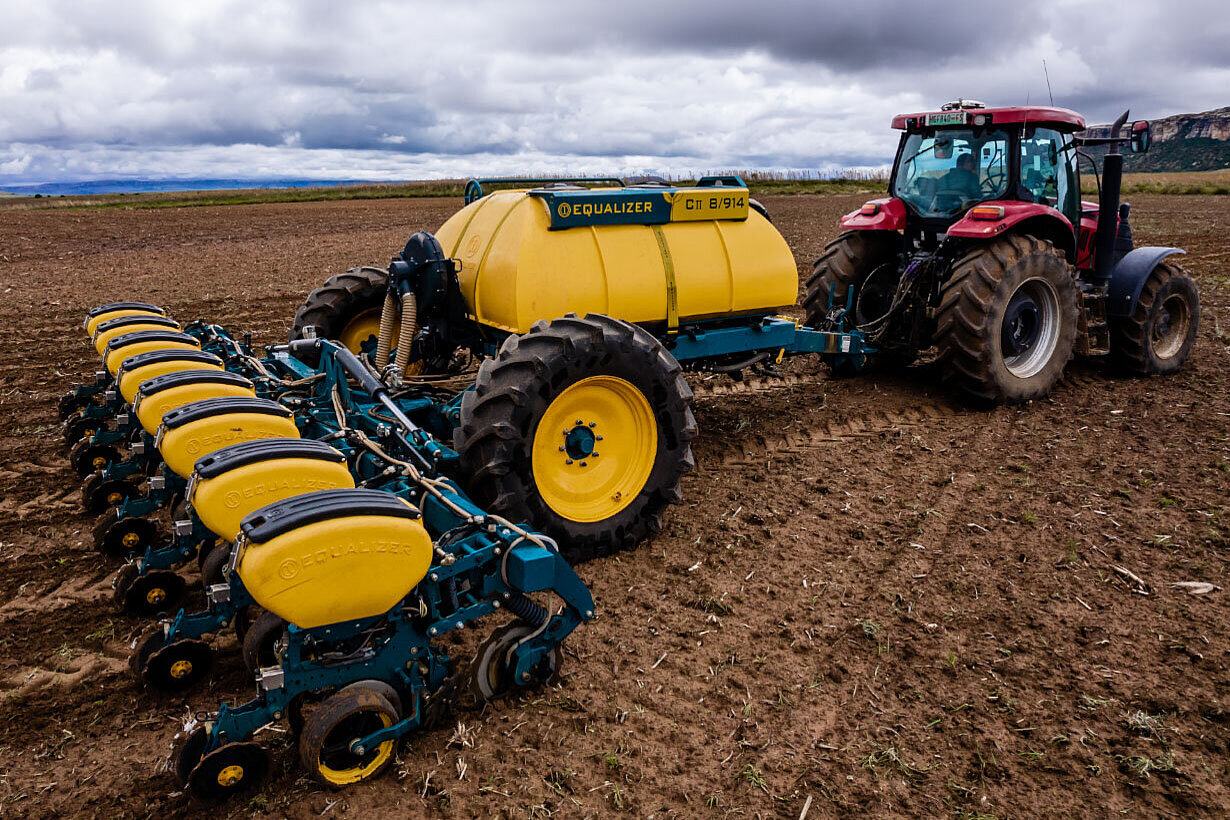

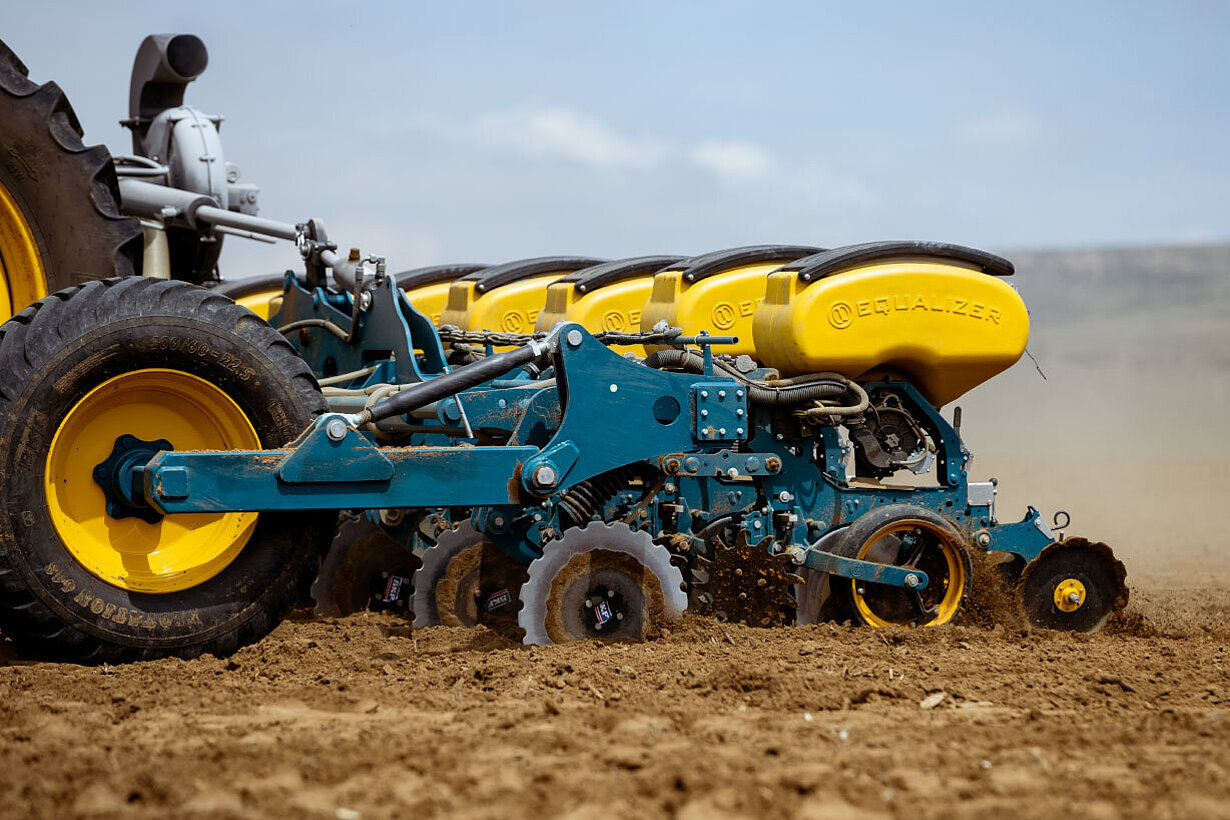

The CII Narrow Planter places corn, sunflower, soybean, sugar beets and other seeds in the soil like a conventional planter. The onboard dry and/or liquid tanks, small footprint, and robust build are anything but conventional. We incorporate Precision Planting™ technology into a frame and delivery system that our engineers and design team have perfected as the most sustainable, low-cost system possible.
CII Narrow Planter Benefits
- Robust, high-strength steel frame and row units are made to perform in tough conditions.
- Factory fitted on-frame tank that offers granular or liquid fertilizer option and combinations of both.
- Factory fitted with Precision Planting™ equipment.

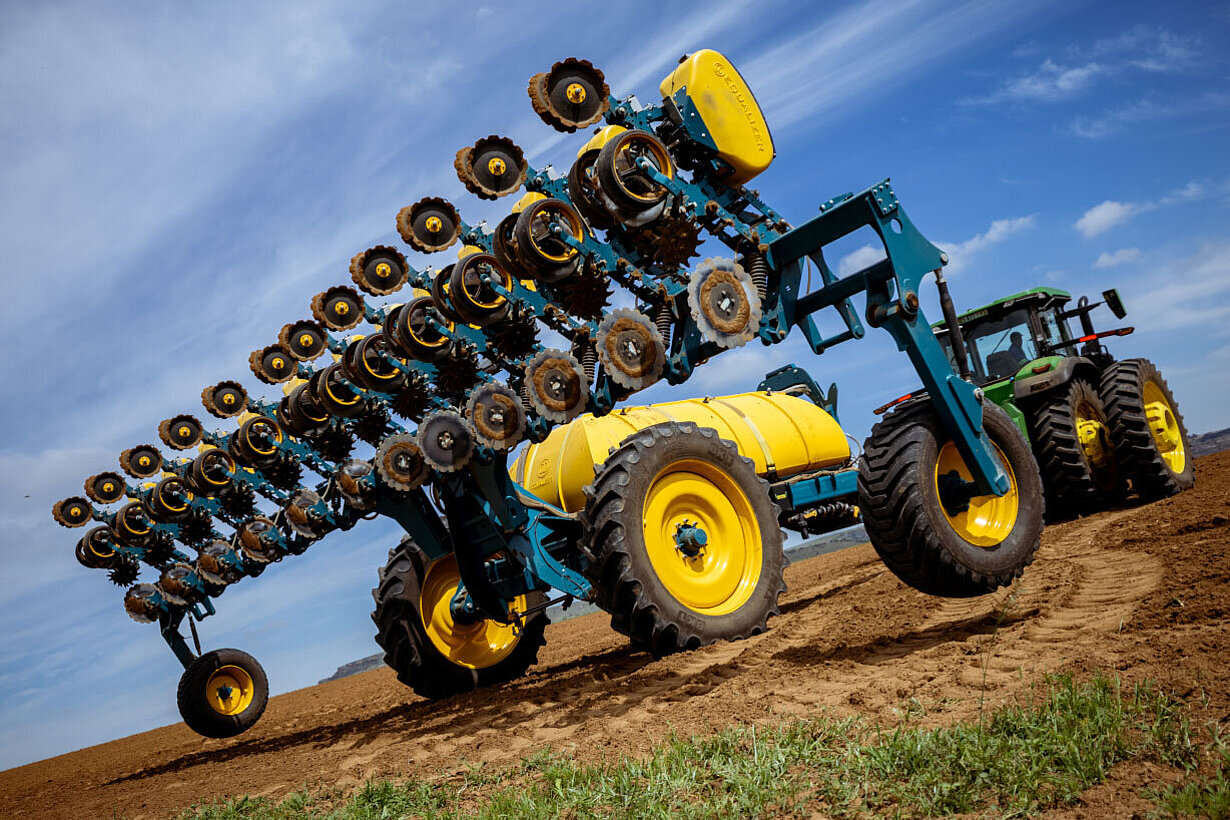

- The frame lifts high for easy maintenance from a standing position, eliminating the need to work on the floor.
- Narrow transport dimensions range from 3.5m (11.5ft) to 3.8m (12.5ft) wide and 3.5m (11.5ft) to 4.5m (14.8ft) tall.
- Large wheels for superior flotation.
CII Narrow Planters Overview
Product Range
-

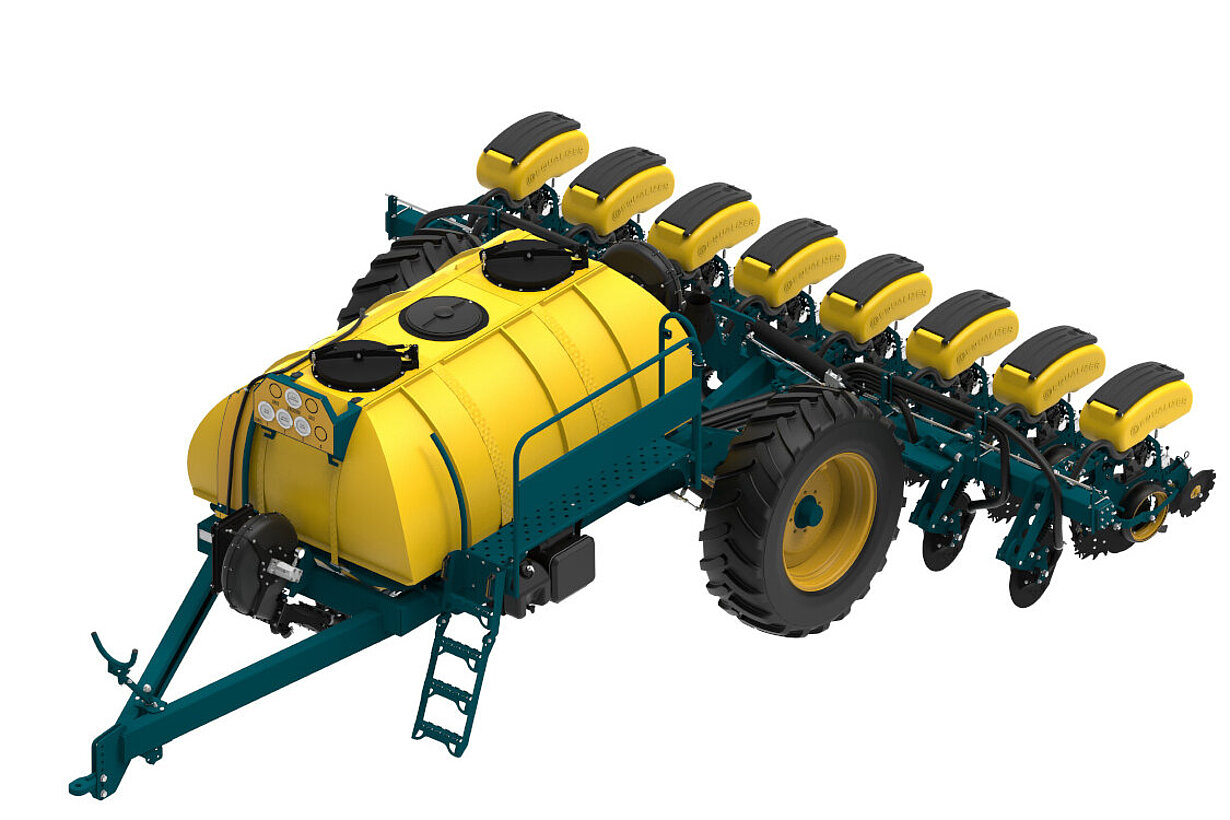

CII 8-700 Narrow Planting Position
-

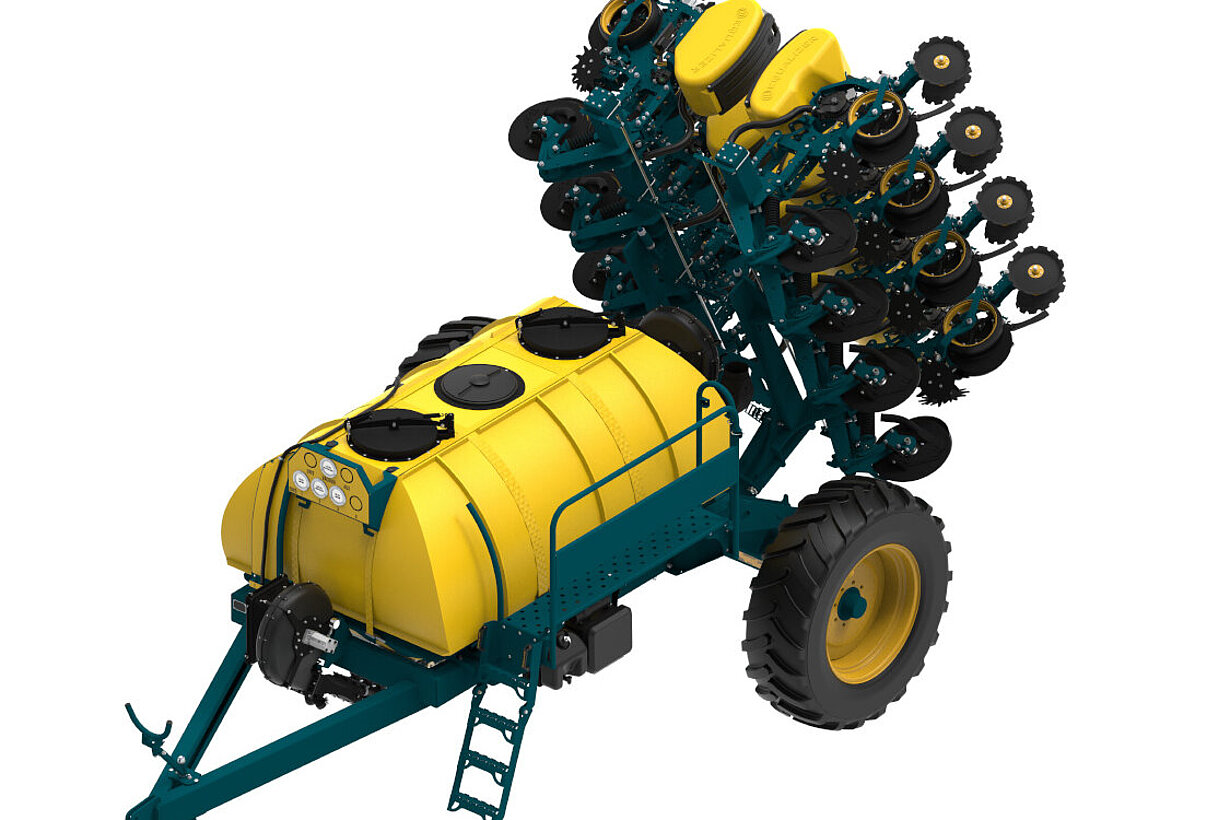

CII 8-700 Narrow Transport Position
-
CII 8-762 Narrow Planting Position
-

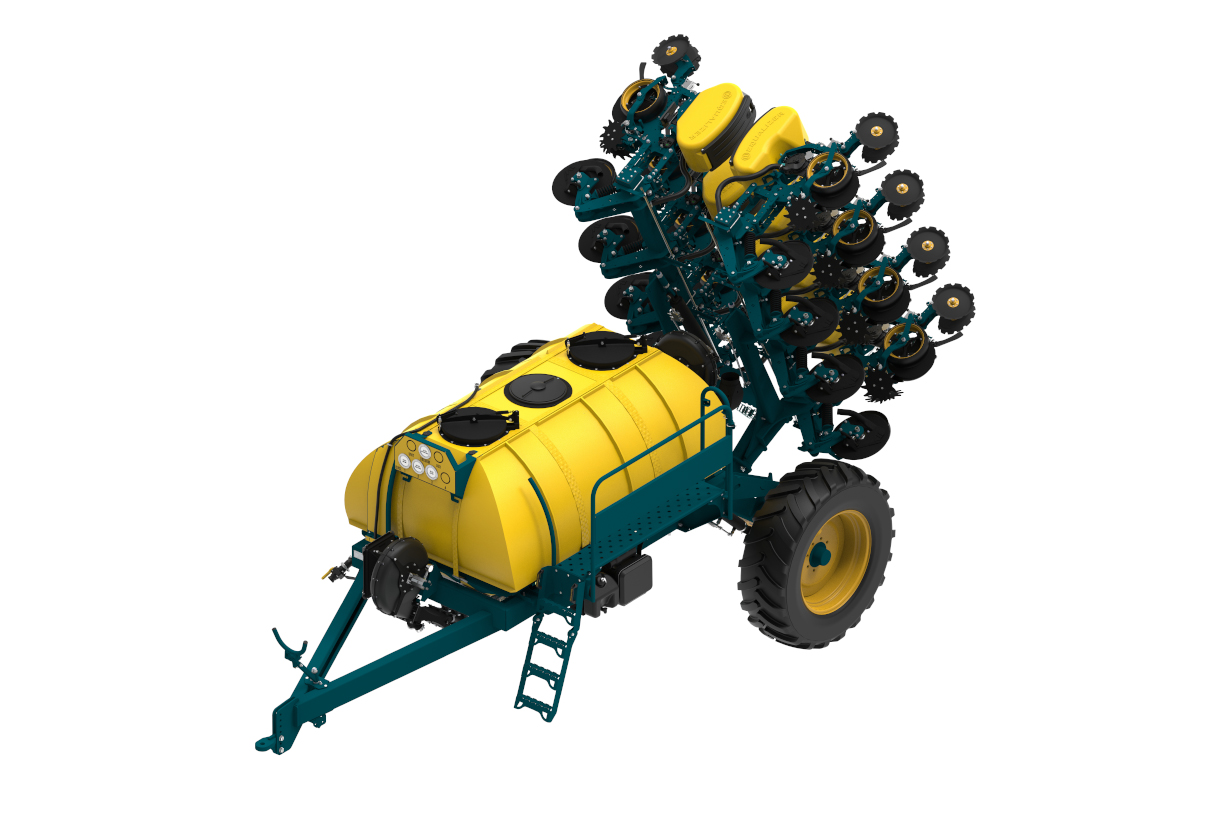

CII 8-762 Narrow Transport Position
-

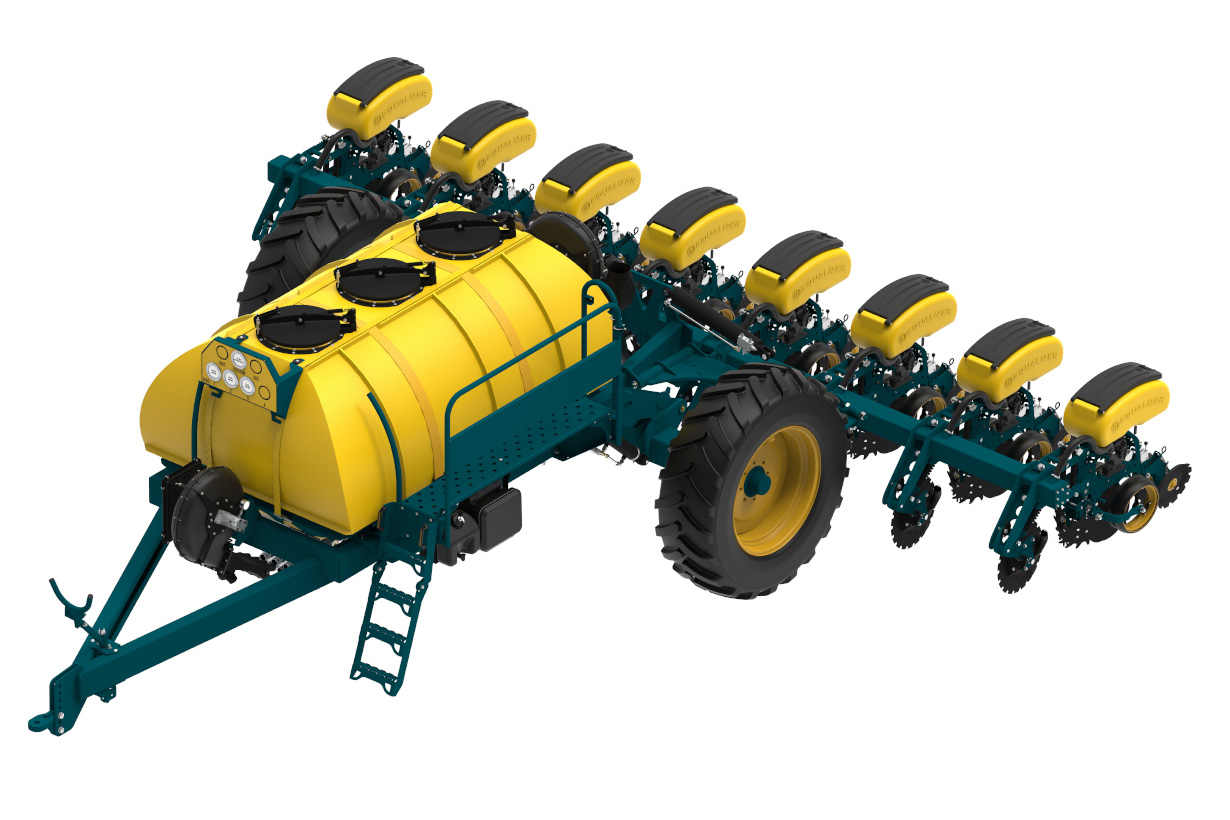

CII 8-914 Narrow Planting Position
-

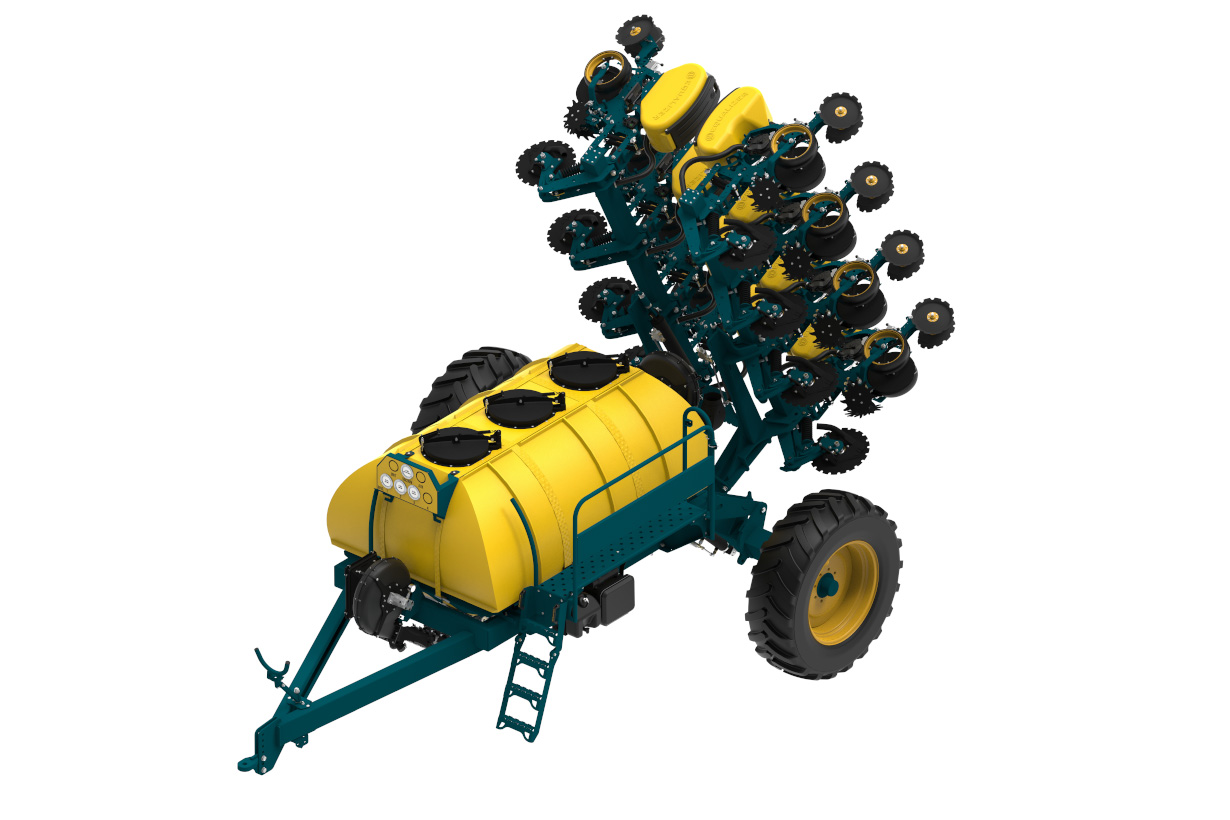

CII 8-914 Narrow Transport Position
-

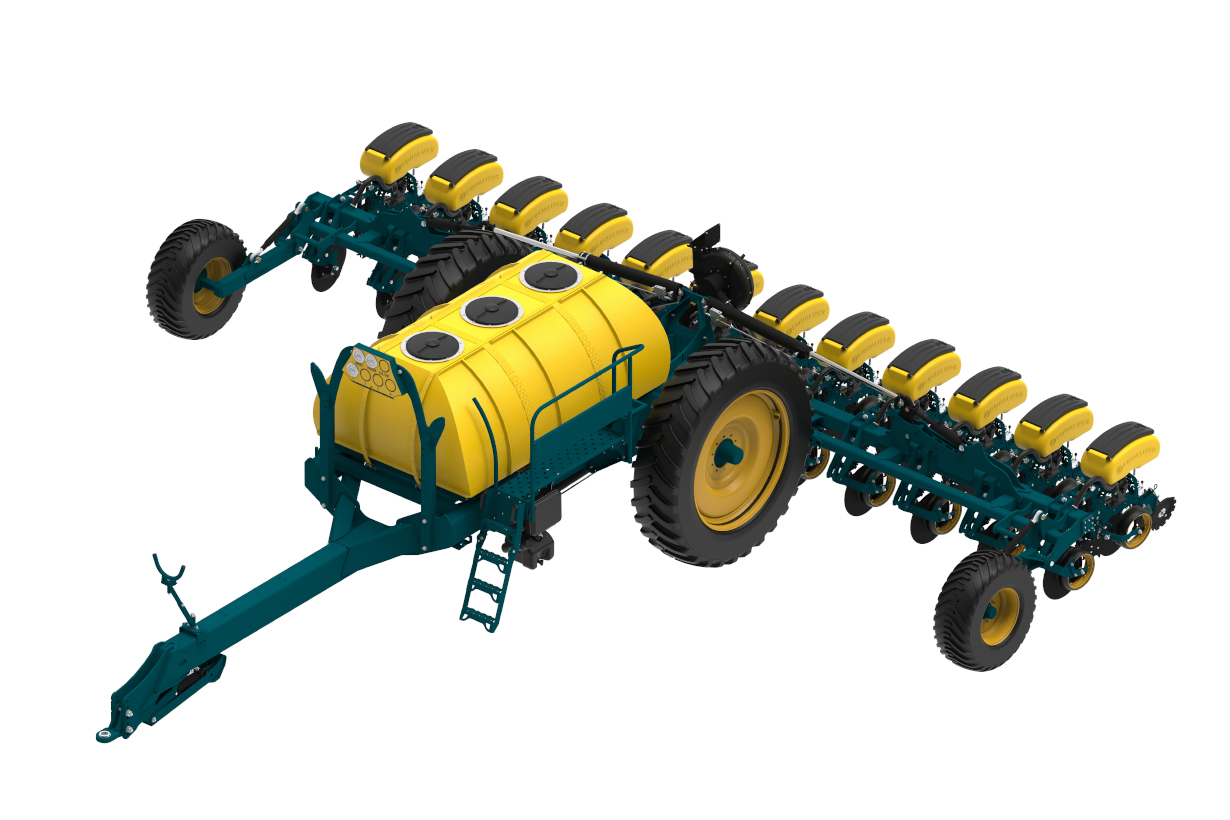

CII 12-762 Narrow Planting Position
-

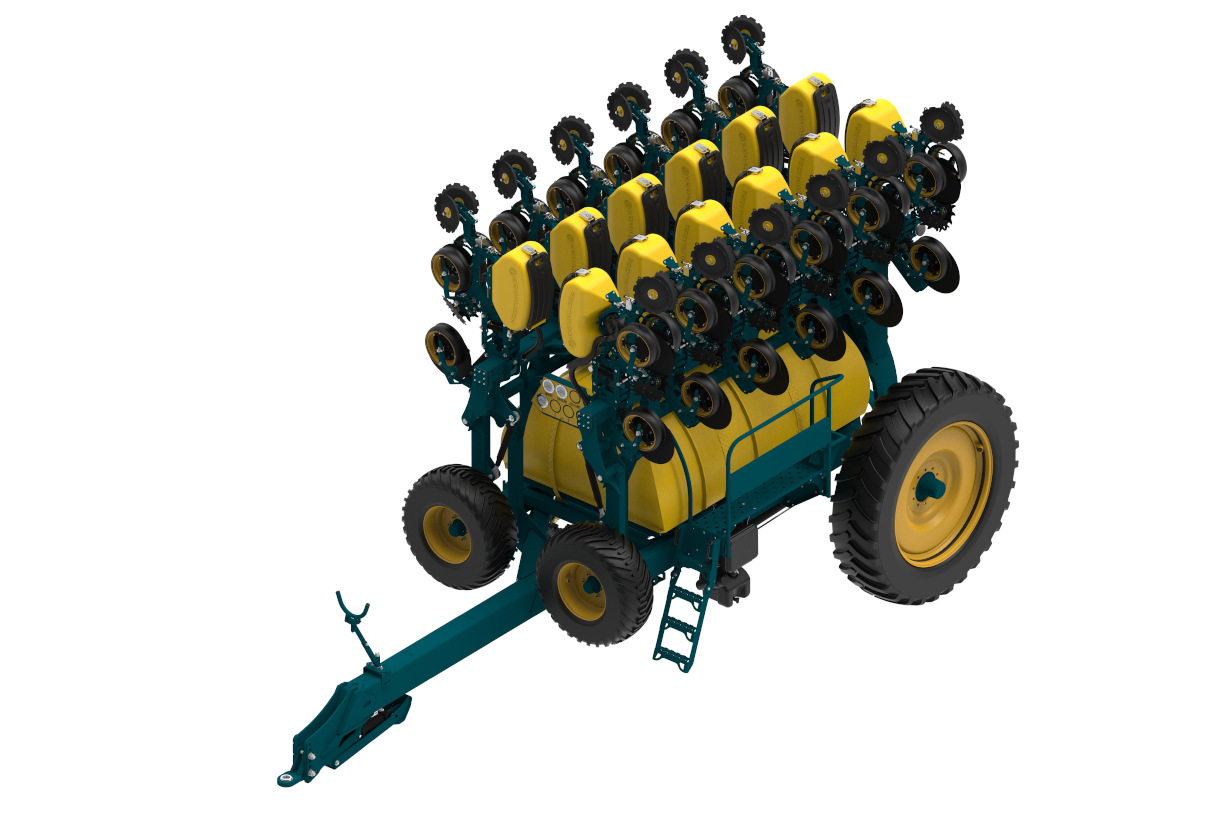

CII 12-762 Narrow Transport Position
-

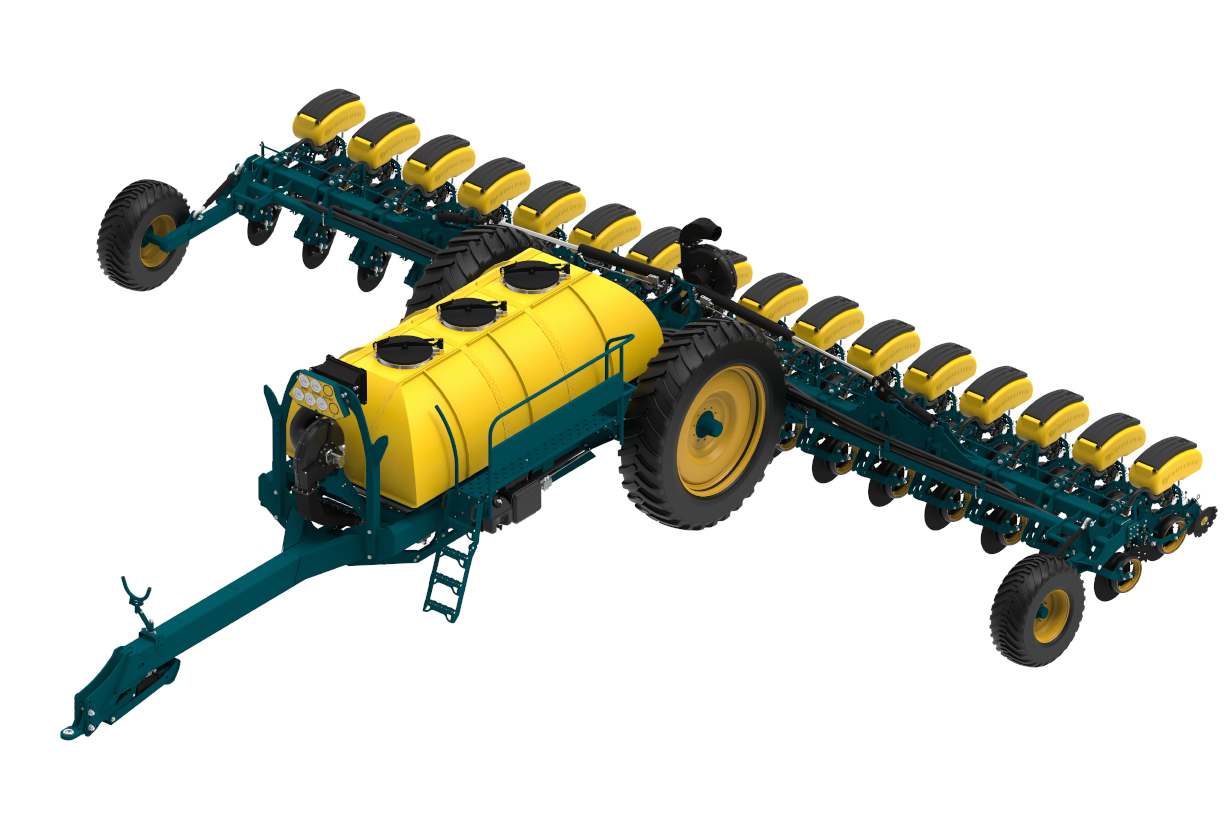

CII 16-700 Narrow Planting Position
-

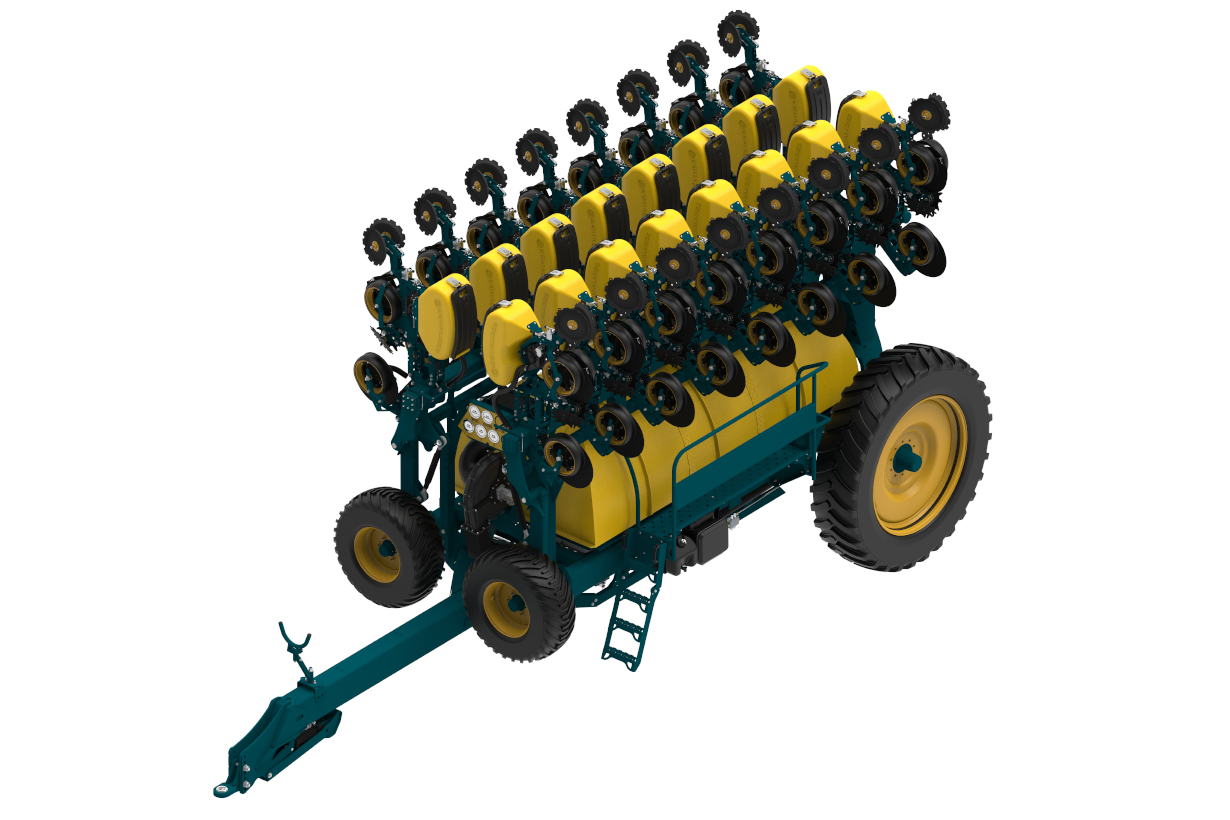

CII 16-700 Narrow Transport Position
-

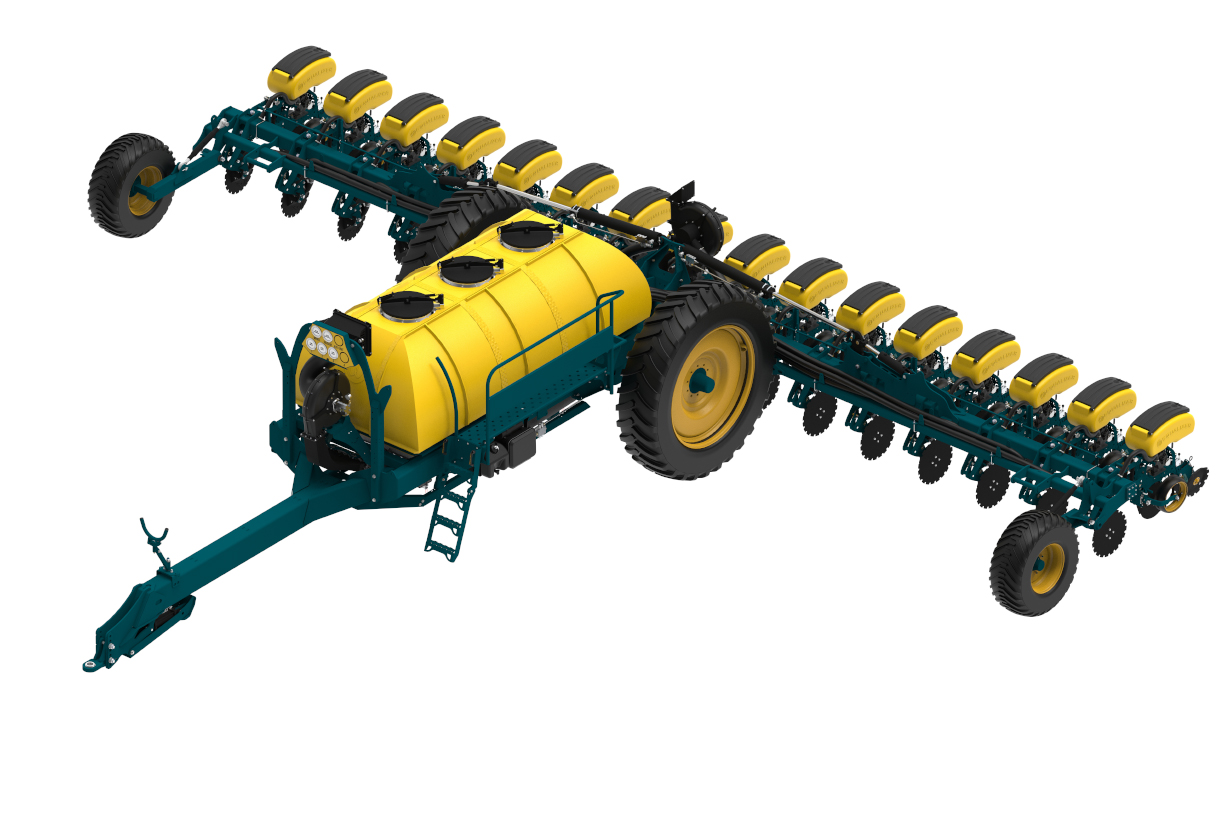

CII 16-762 Narrow Planting Position
-

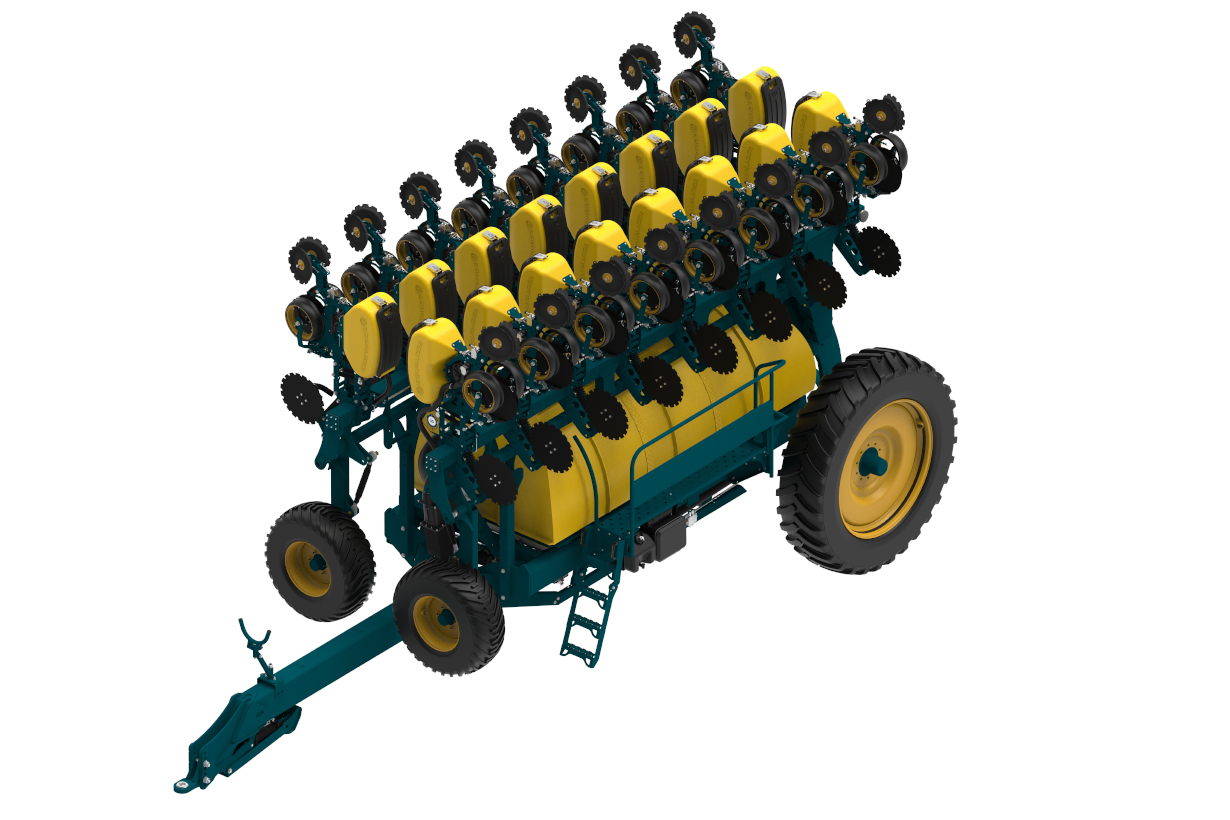

CII 16-762 Narrow Transport Position
-

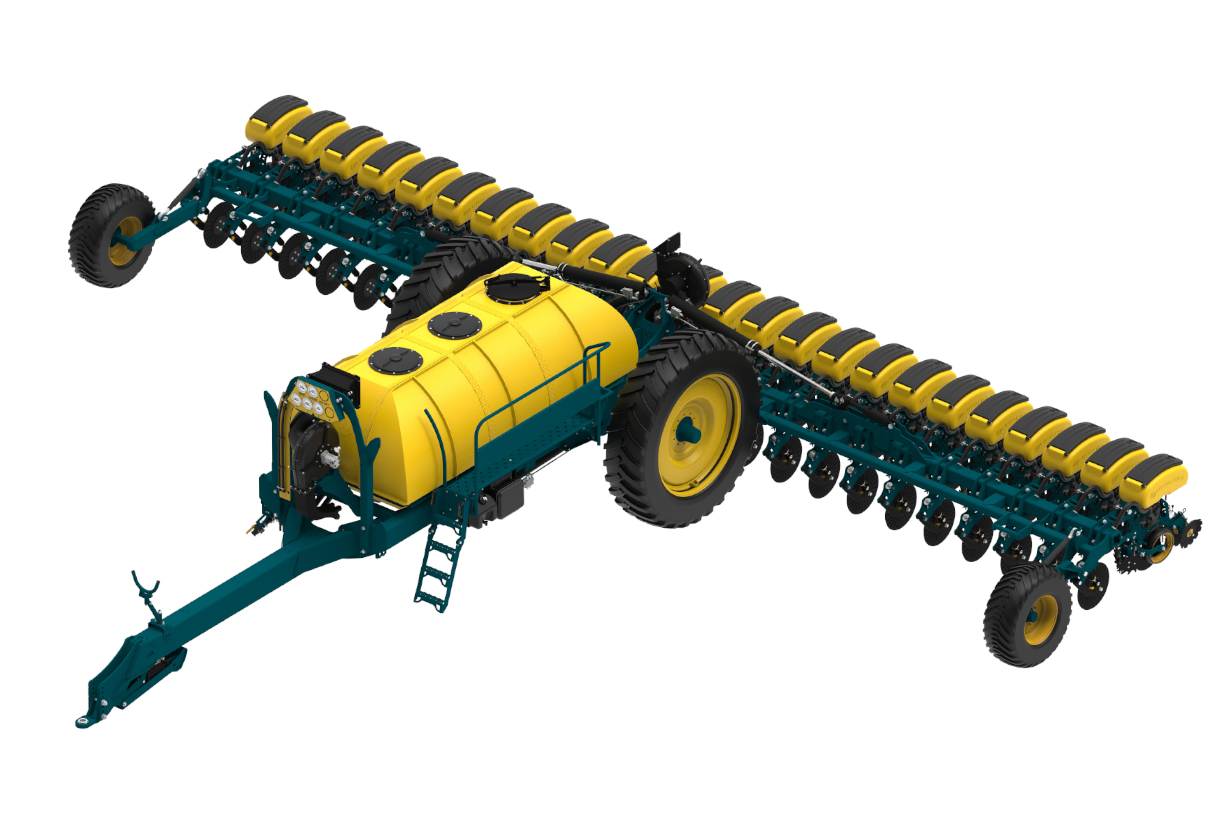

CII 24-508 Narrow Planting Position
-

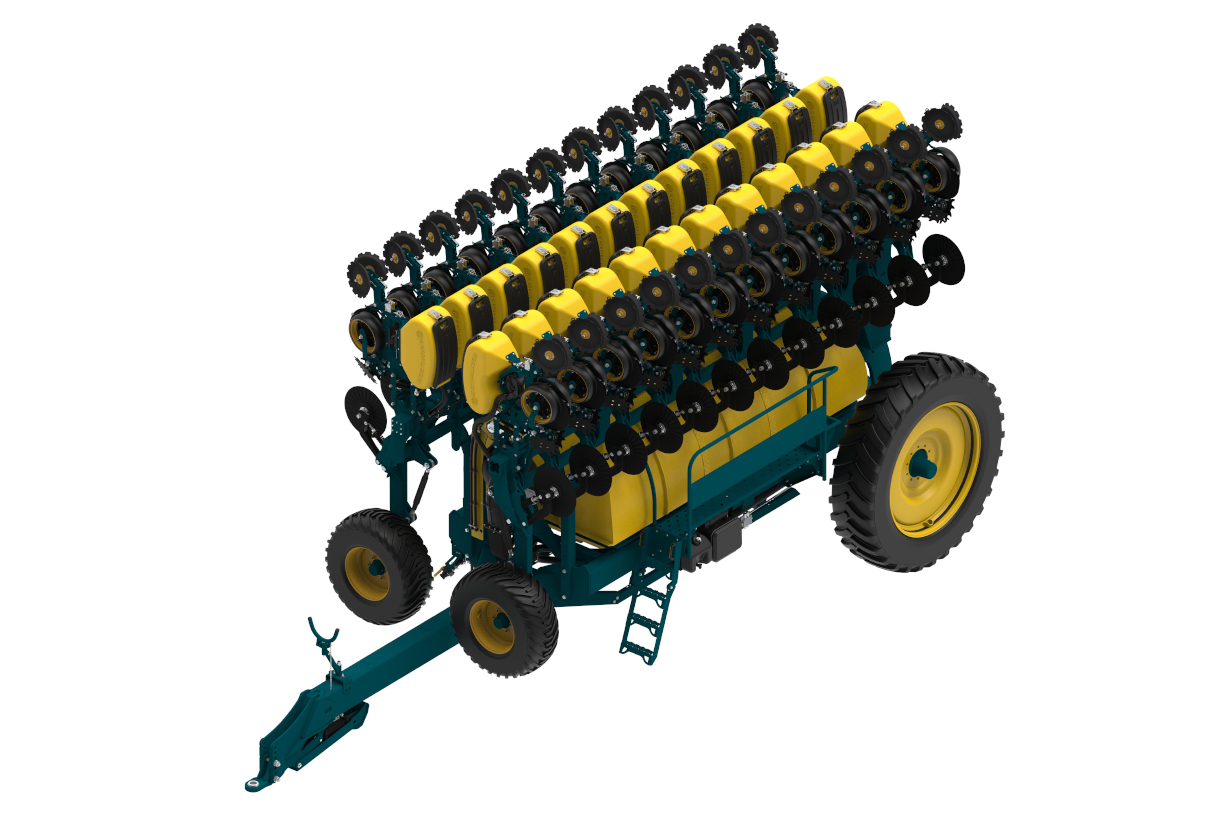

CII 24-508 Narrow Transport Position
-

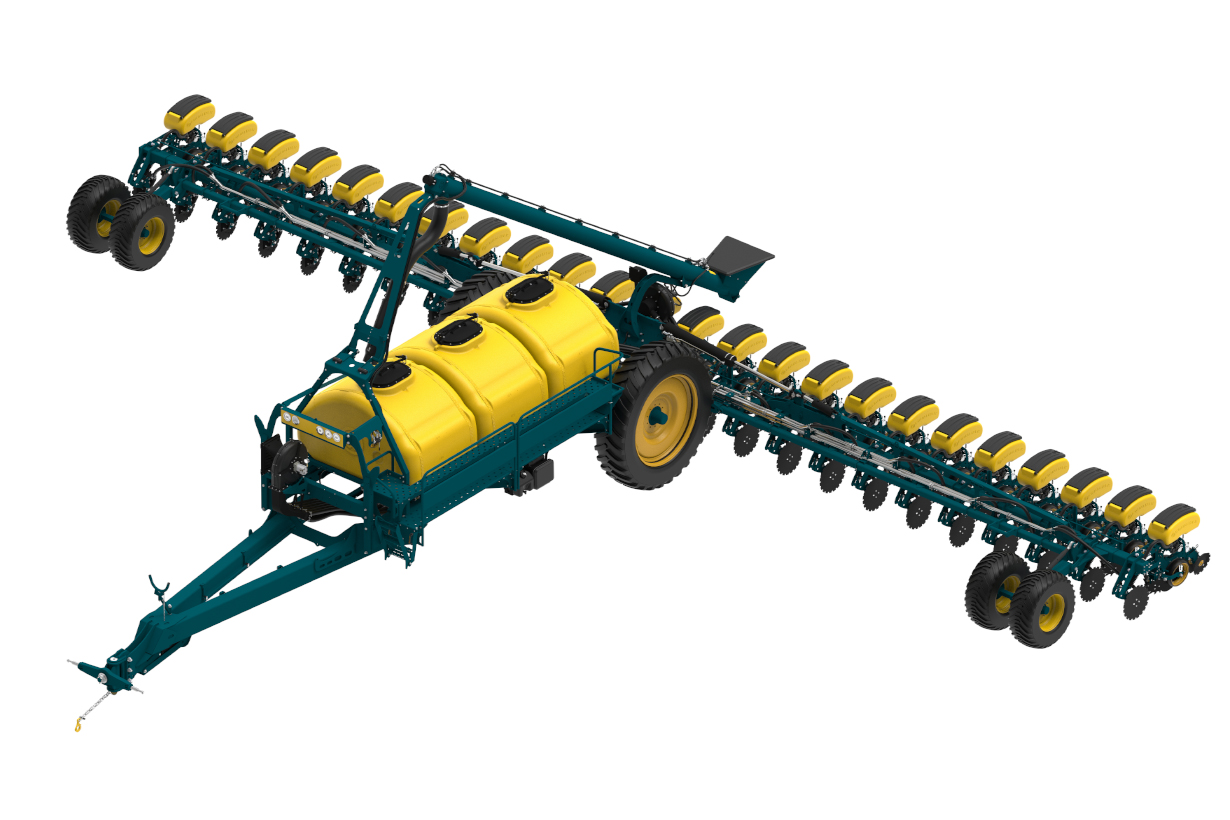

CII 24-762 Narrow Planting Position
-

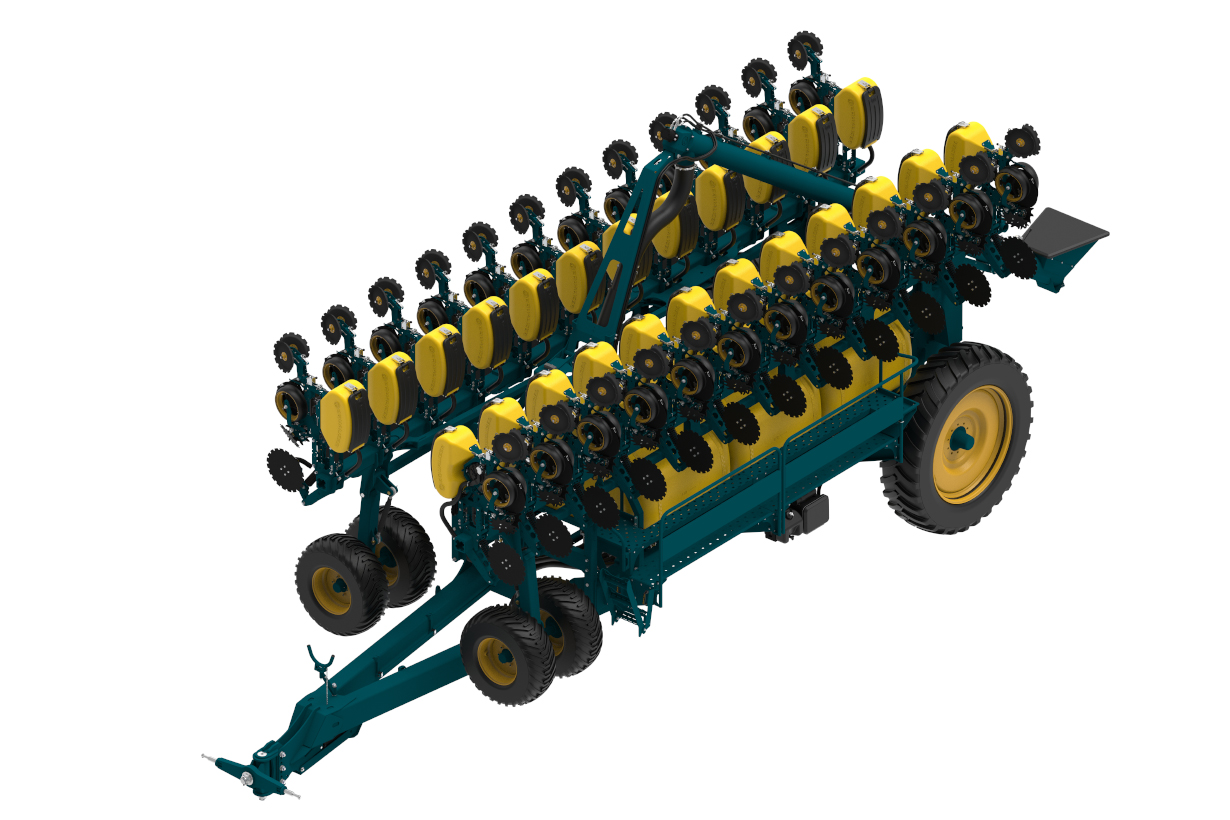

CII 24-762 Narrow Transport Position

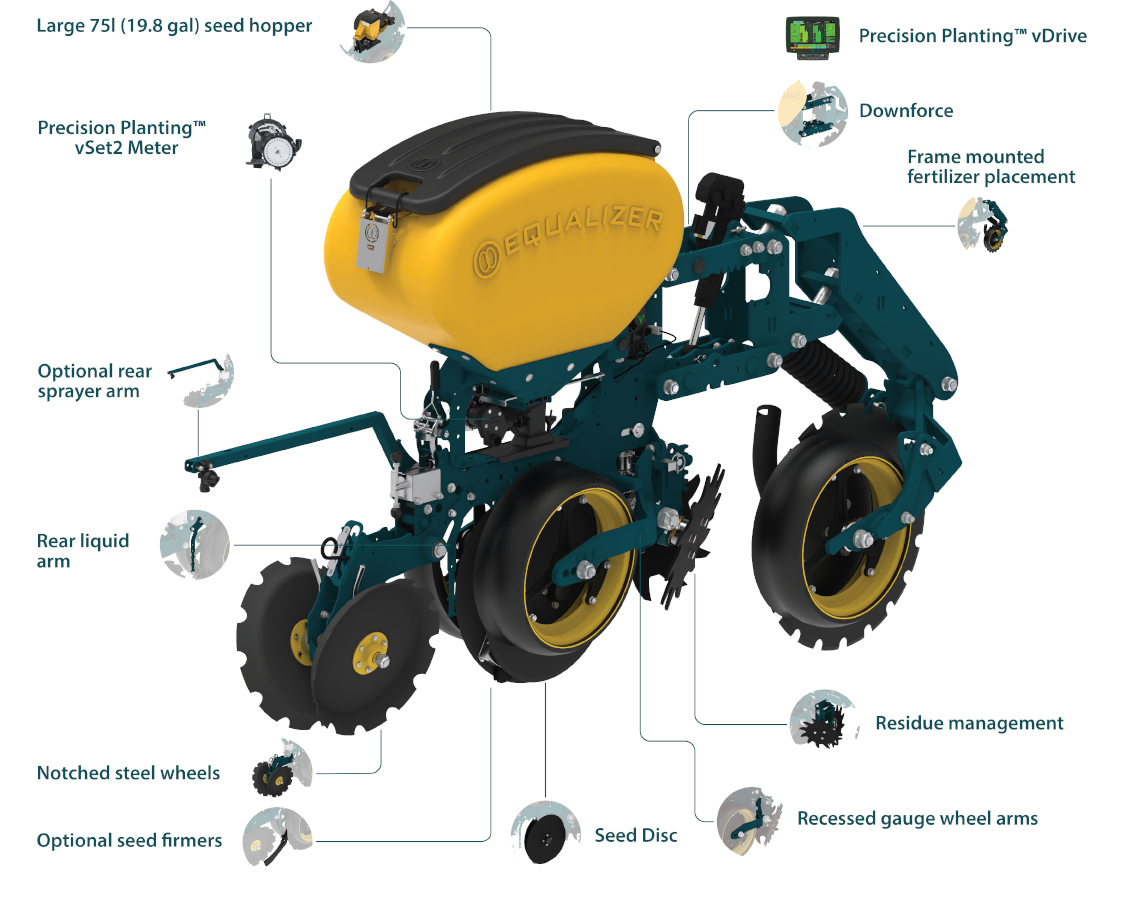

The CII Precision Unit
Designed for planting corn, sunflower, soybeans, sugar beets etc.
Standard Unit Features

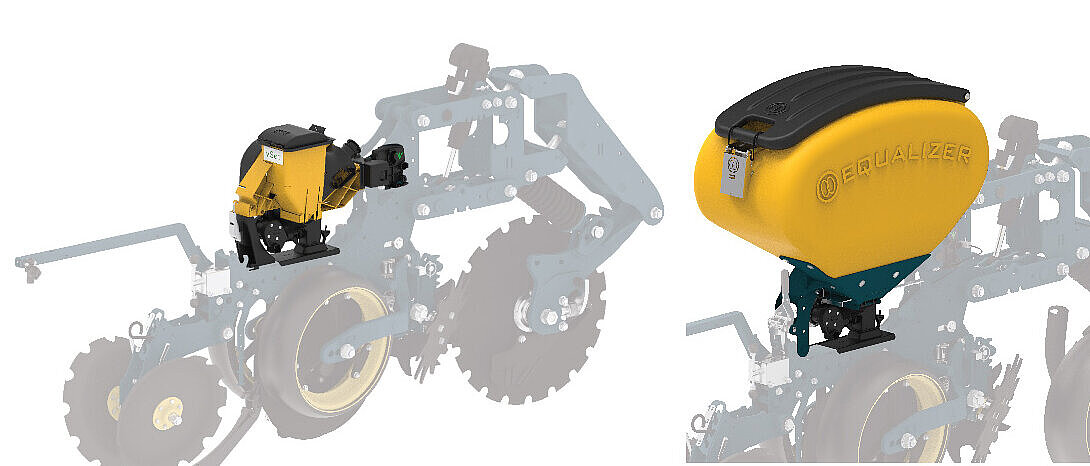

Large 75L (19.8 gal) Seed Hopper or Mini Hopper fed from a central seed hopper tank.

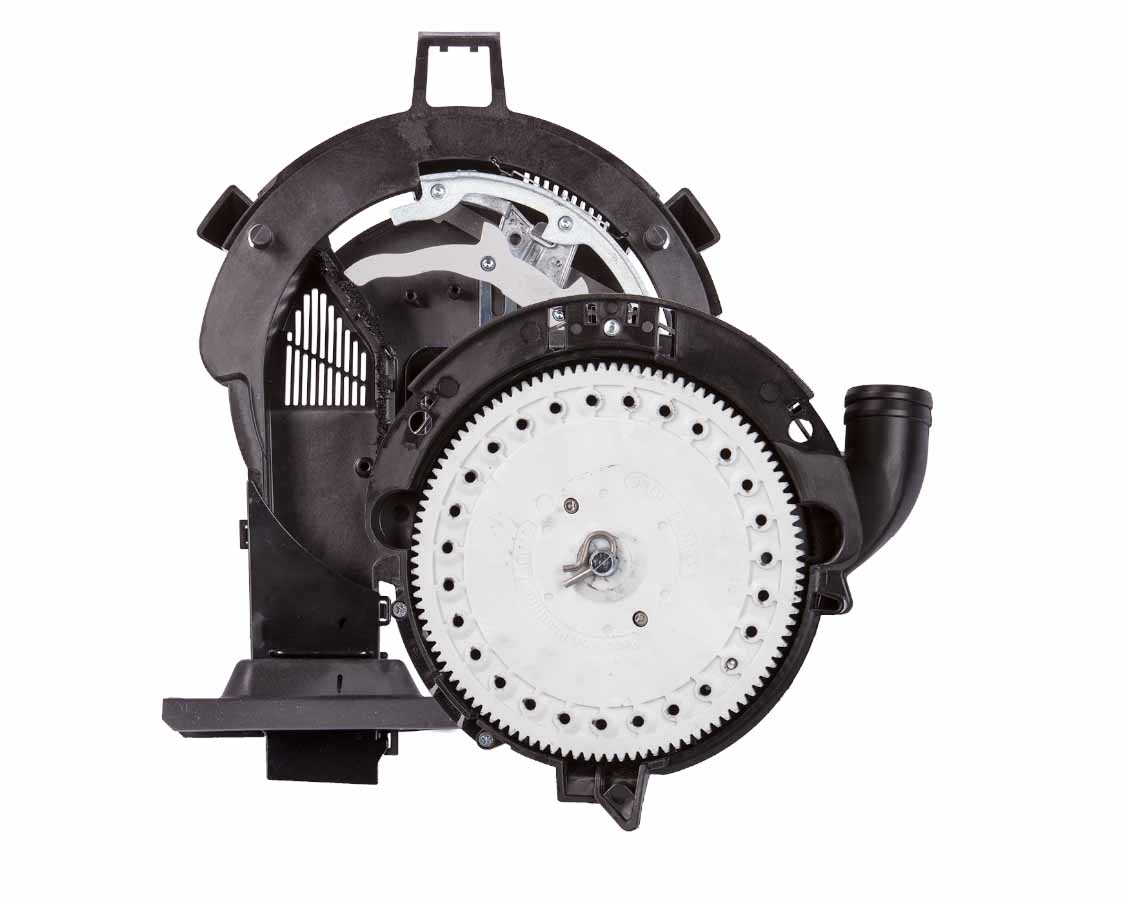

Factory-fitted with Precision Planting™ vSet2 for effortless meter accuracy. More than 13 crop kits to handle almost any crop, including maize, sunflower, soybeans, sugar beets etc.

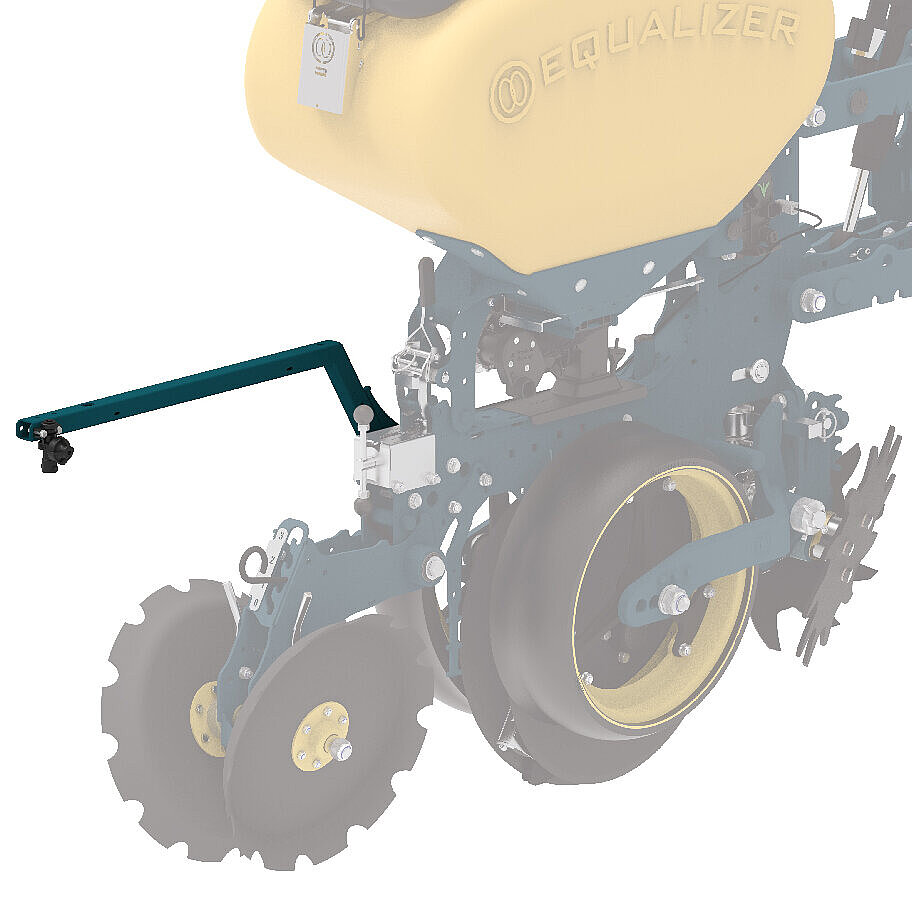

Herbicide application with a sprayer nozzle.
Liquid fertilizer or inoculant placement above the seed.

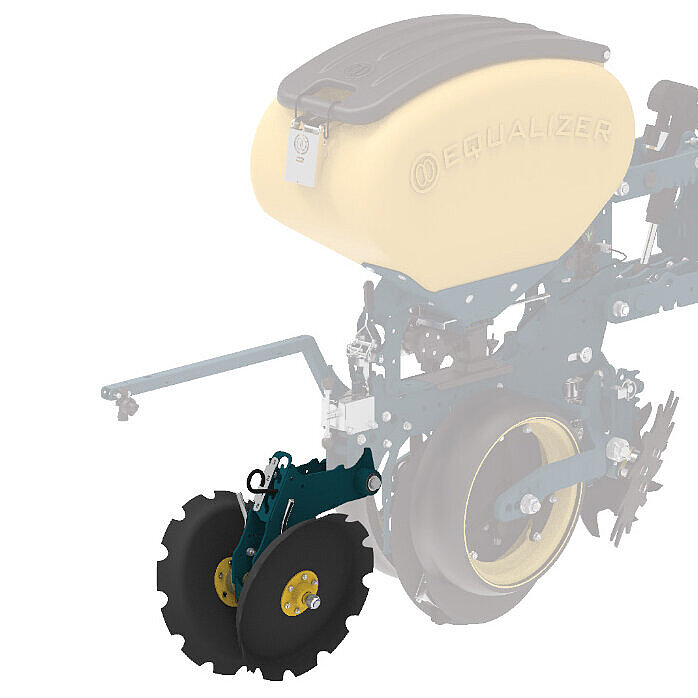

Notched steel closing wheels with independent toe-out adjustment

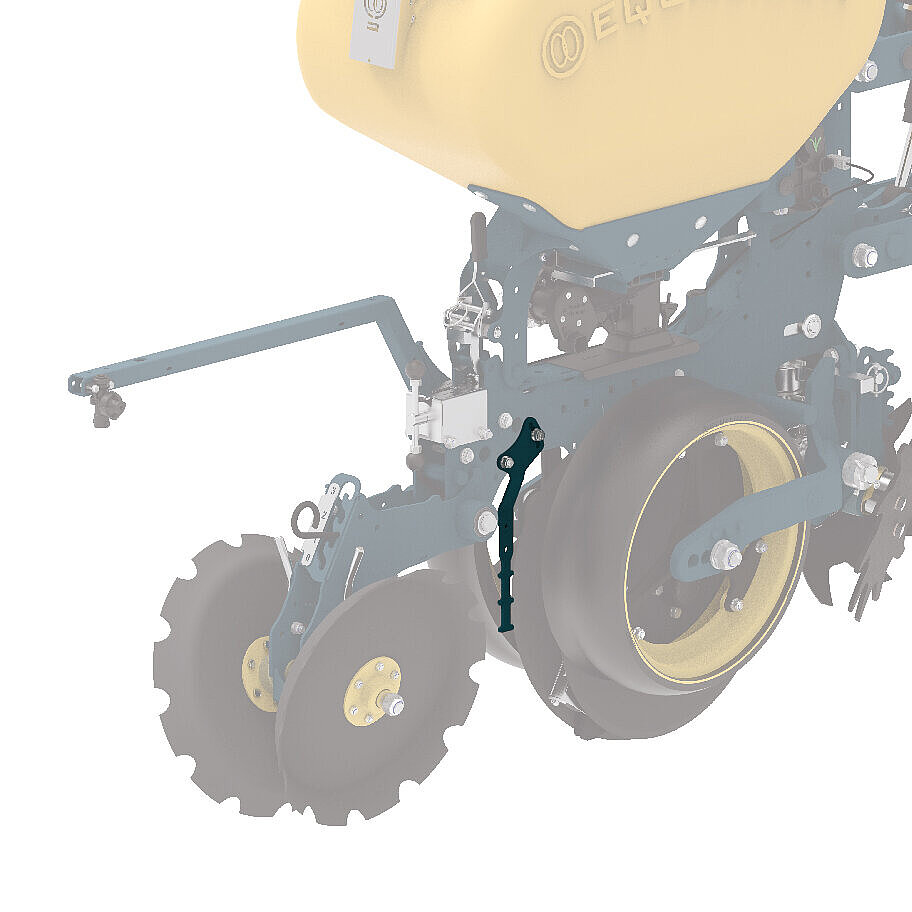

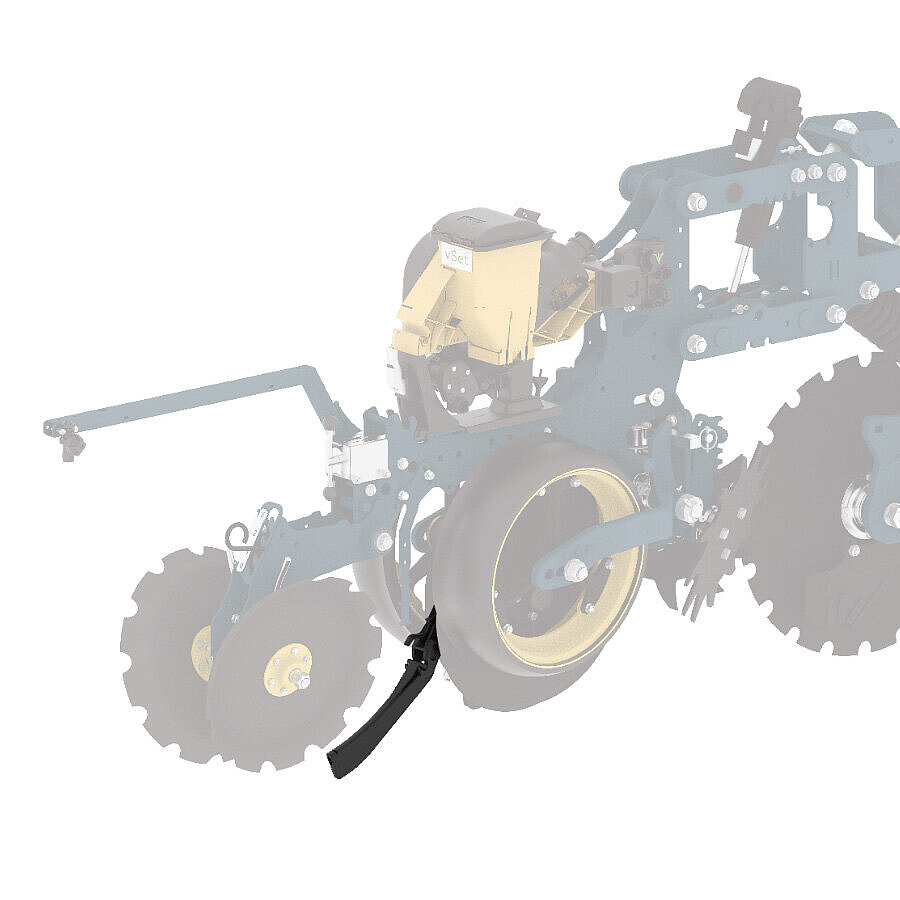

SmartFirmer2 compatible quick-attach bracket or Low Stick Keeton Seed Firmer with quick-attach bracket.

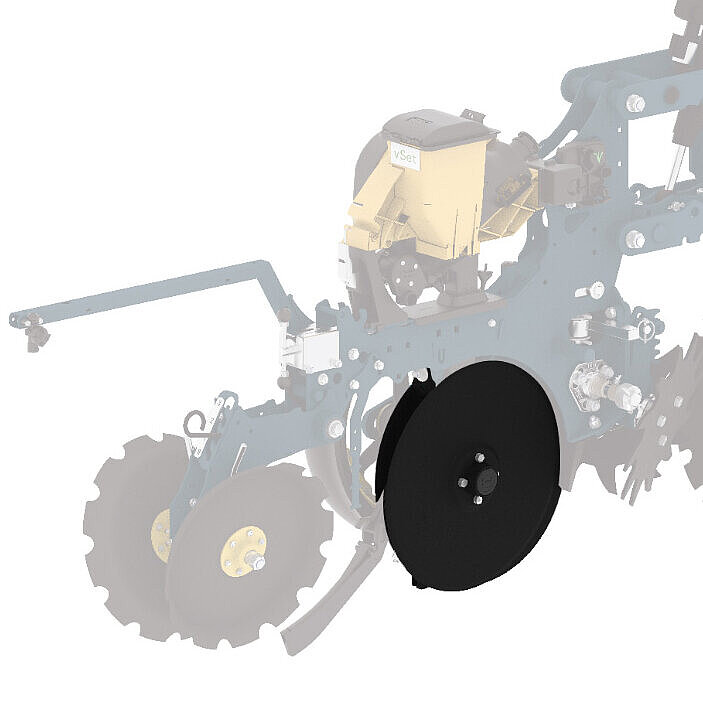

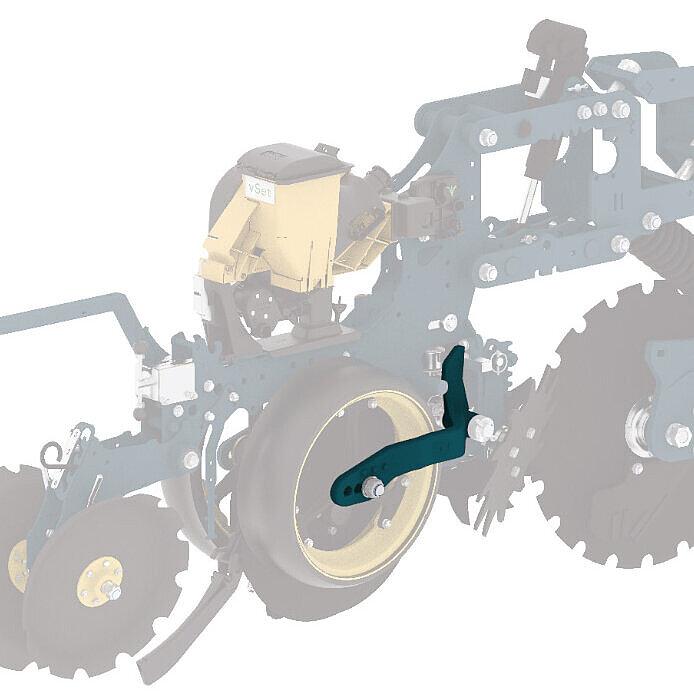

Can be replaced without removing the hubs. 9.5-degree seed disc angle for less soil disturbance and better fuel efficiency.
Reduce the unit width and improve material flow.

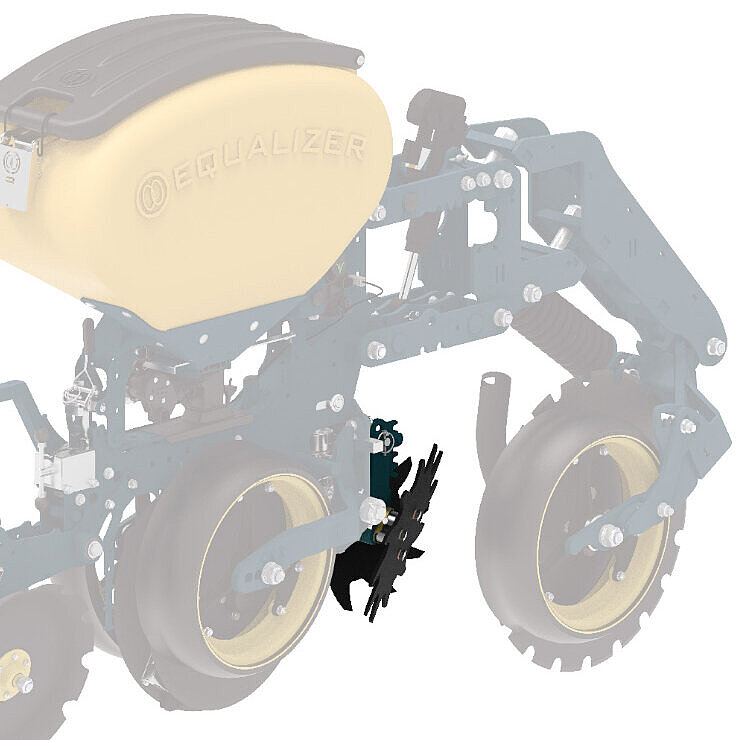

Double row cleaners, with tool free adjustment.

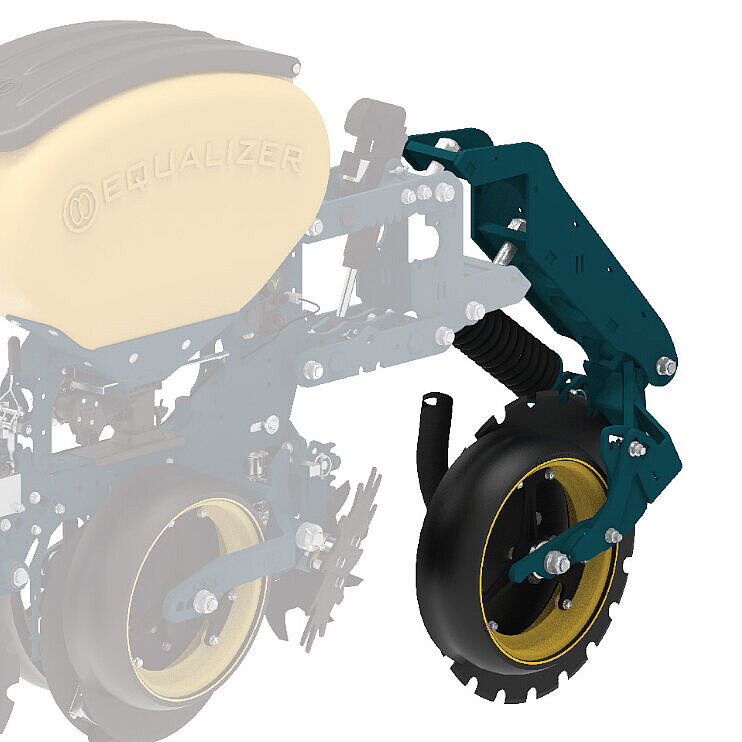

559mm (22””) angled notched fertilizer coulter with gauge wheel.
Easily adjustable mechanical spring downforce,
or Precision Planting™ DeltaForce(variable row-by-row hydraulic downforce).

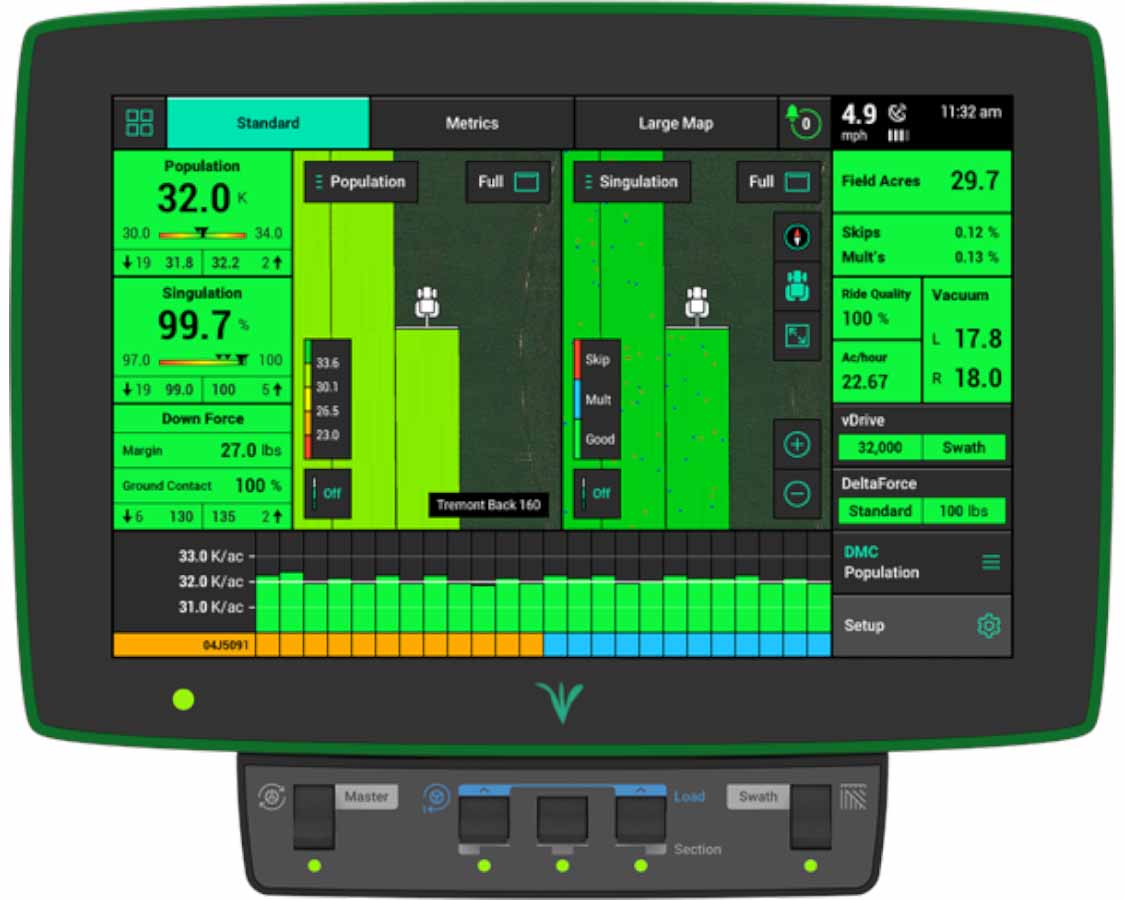

Precision Planting™ 20/20 Gen3 SeedSense® monitor system
Product Placement

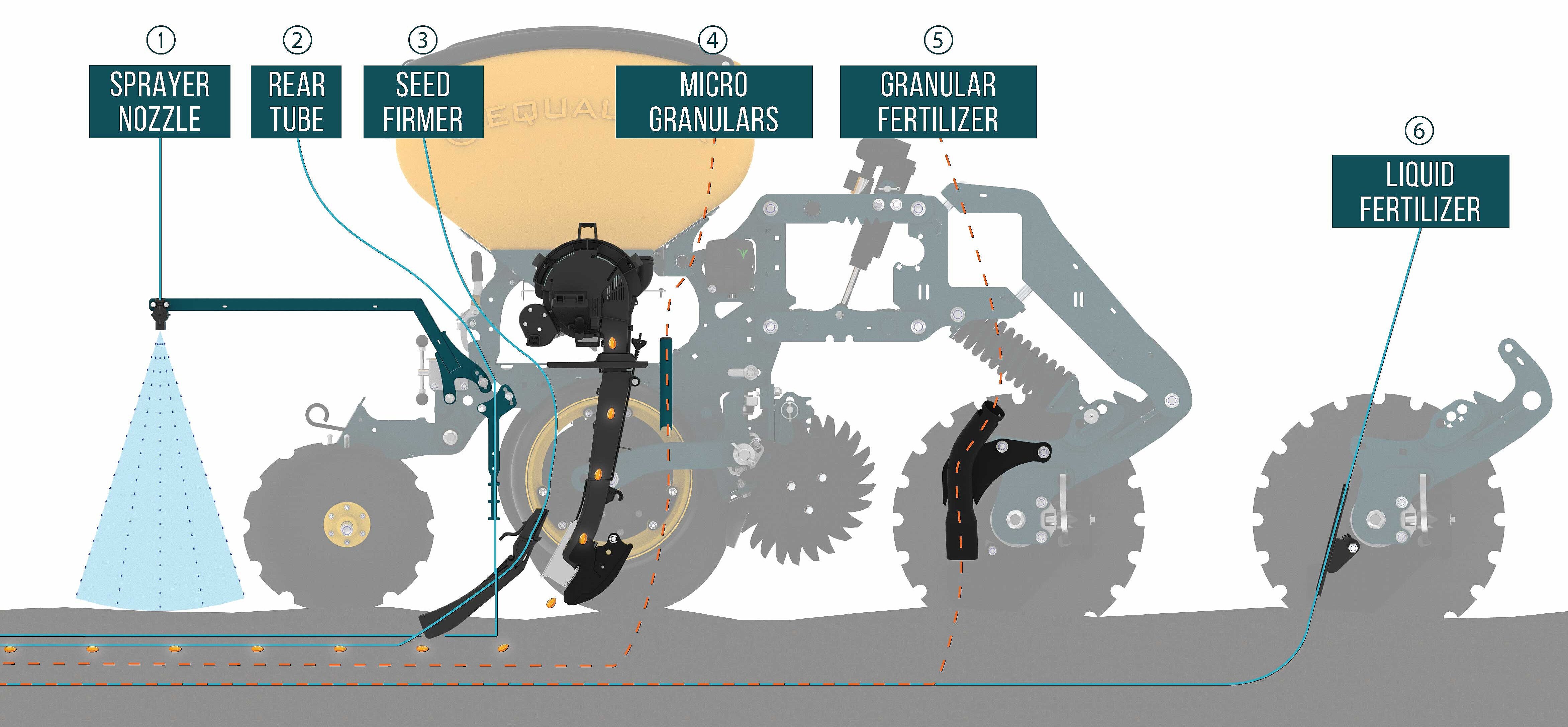

Placement Options

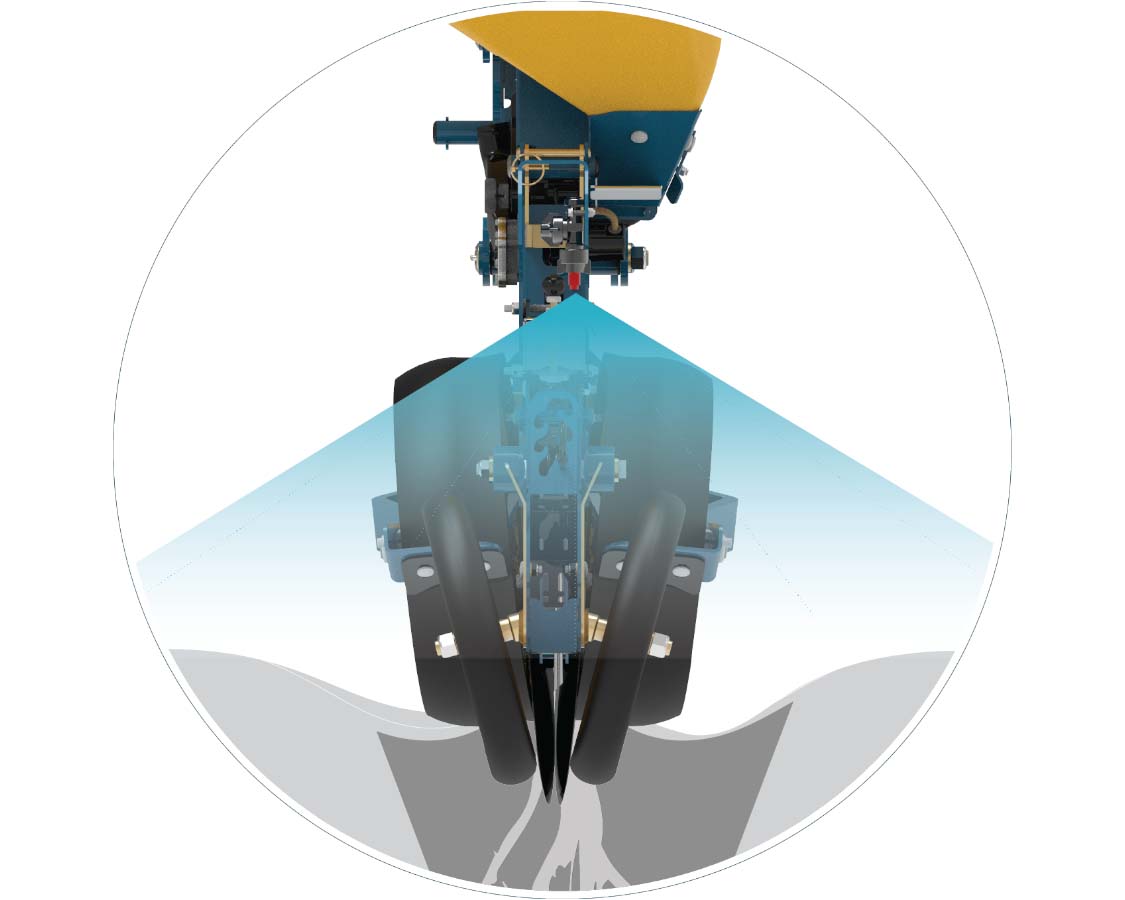

Herbicides application with a sprayer nozzle.
Liquid fertilizer or inoculant placement above the seed.

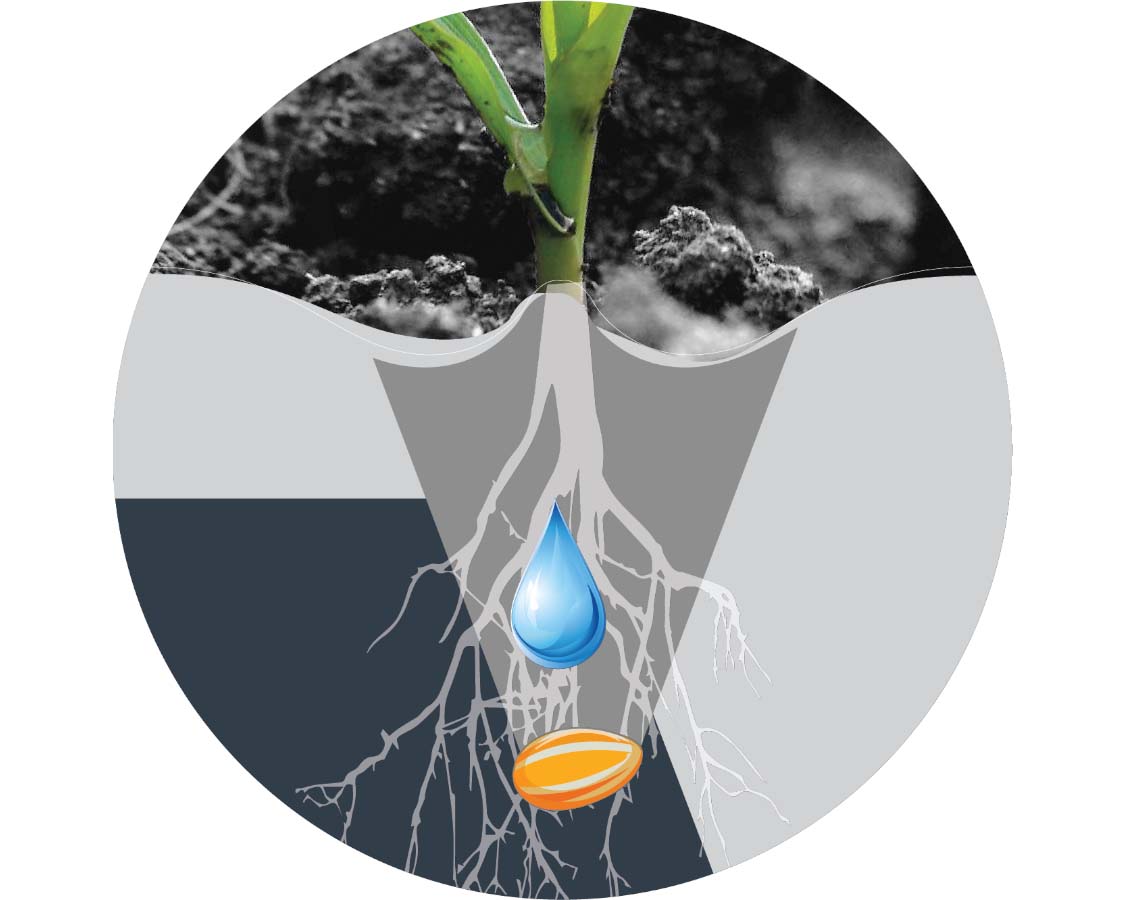

Liquid fertilizer or liquid inoculant placement on top of the seed.
Microgranular placement under seed.

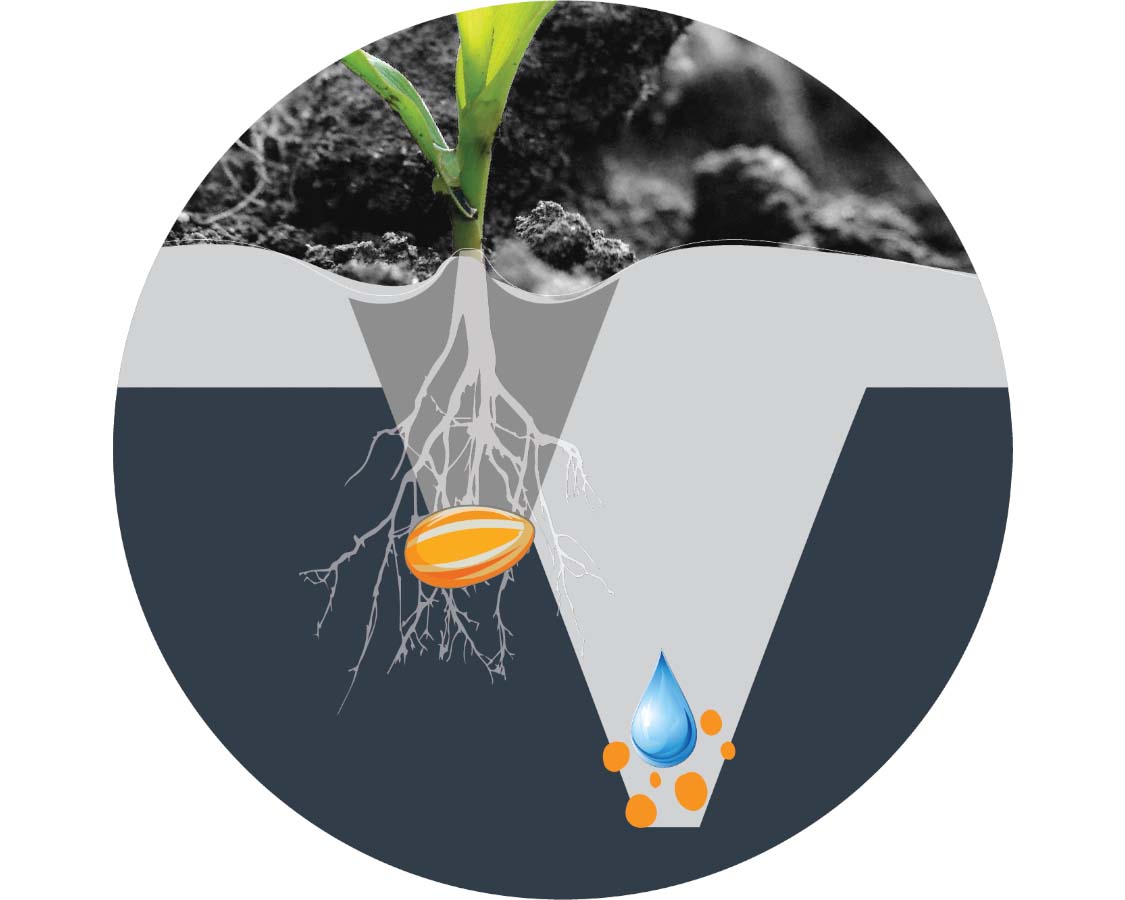

Granular and/or liquid fertilizer placement 45mm (2 inches) next to and below the seed.

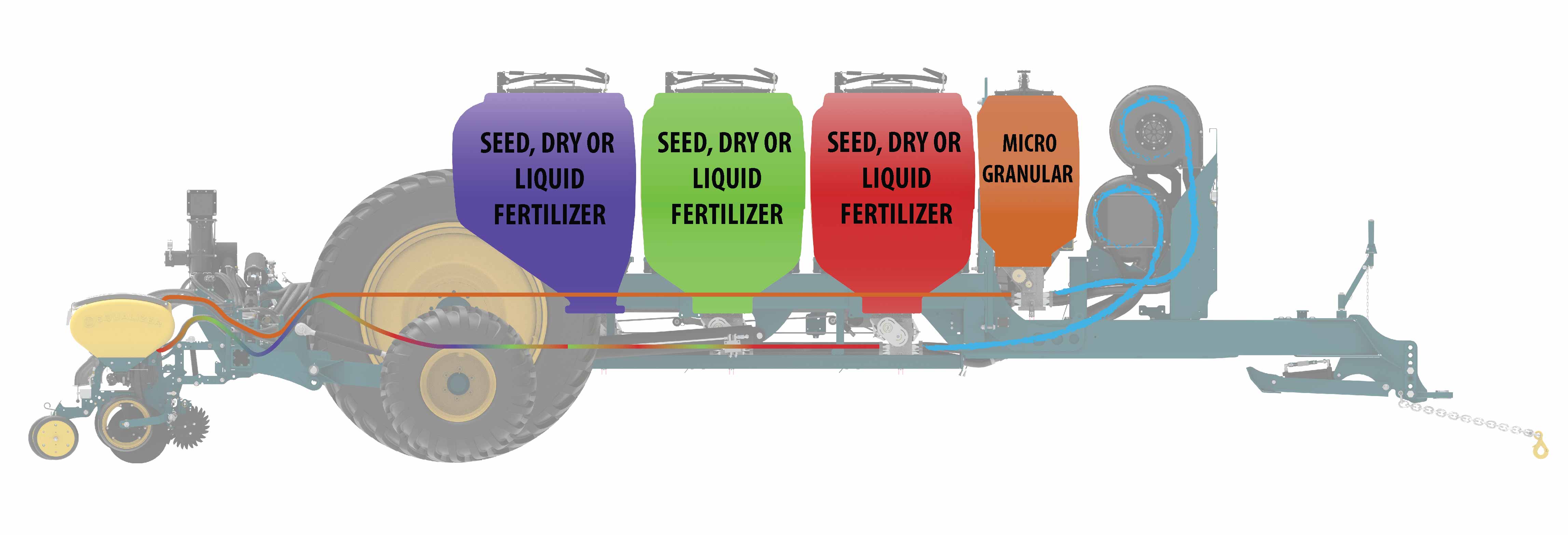

Seed & Fertilizer Distribution
- The polyethylene tanks are suitable for both liquid and granular fertilizers
- When equipped with liquid tanks, Banjo tank fittings, manifolds, valves, and three-stage filters are standard

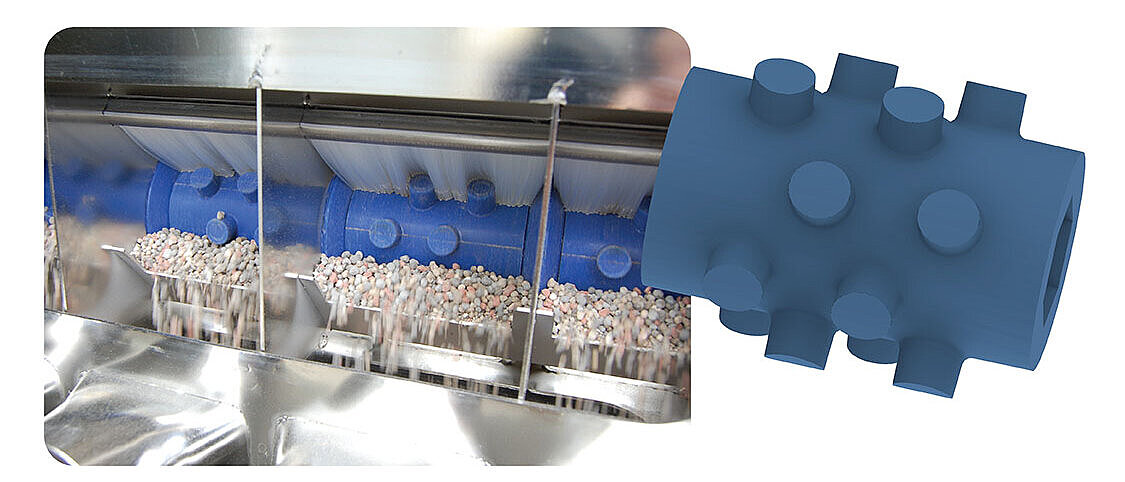

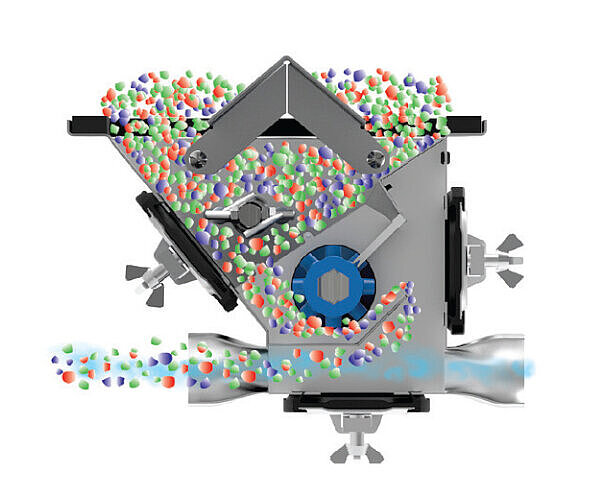

Granular Fertilizer Meterbox
- Stainless steel with self-cleaning poly meter roller
- Accurate, versatile and simple with effortless calibration
- One metering roller for all Fertilizer & Seed types and sizes
No roller
changes
required
Stainless steel metering units with individual line metering. This means each divider head has its own individual meter roller and there is only one divider head between the row unit and the metering roller which ensures maximum accuracy with an air seeder as eliminates the possibility of variation between sections.

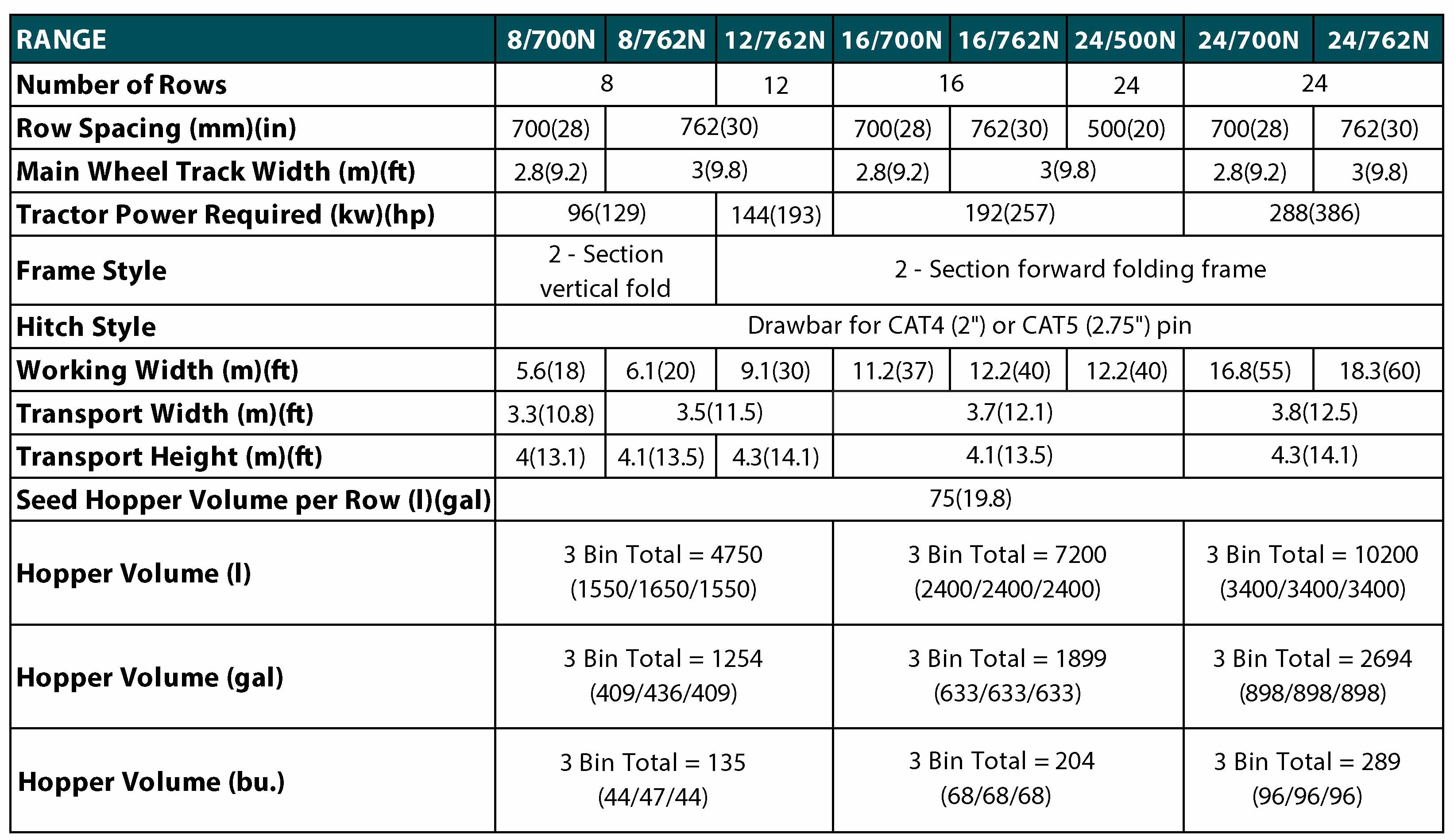

Export Product Range Specifications
*Specifications for export outside of South Africa
Seeds: corn, sunflower, soybeans, sugar beets etc.

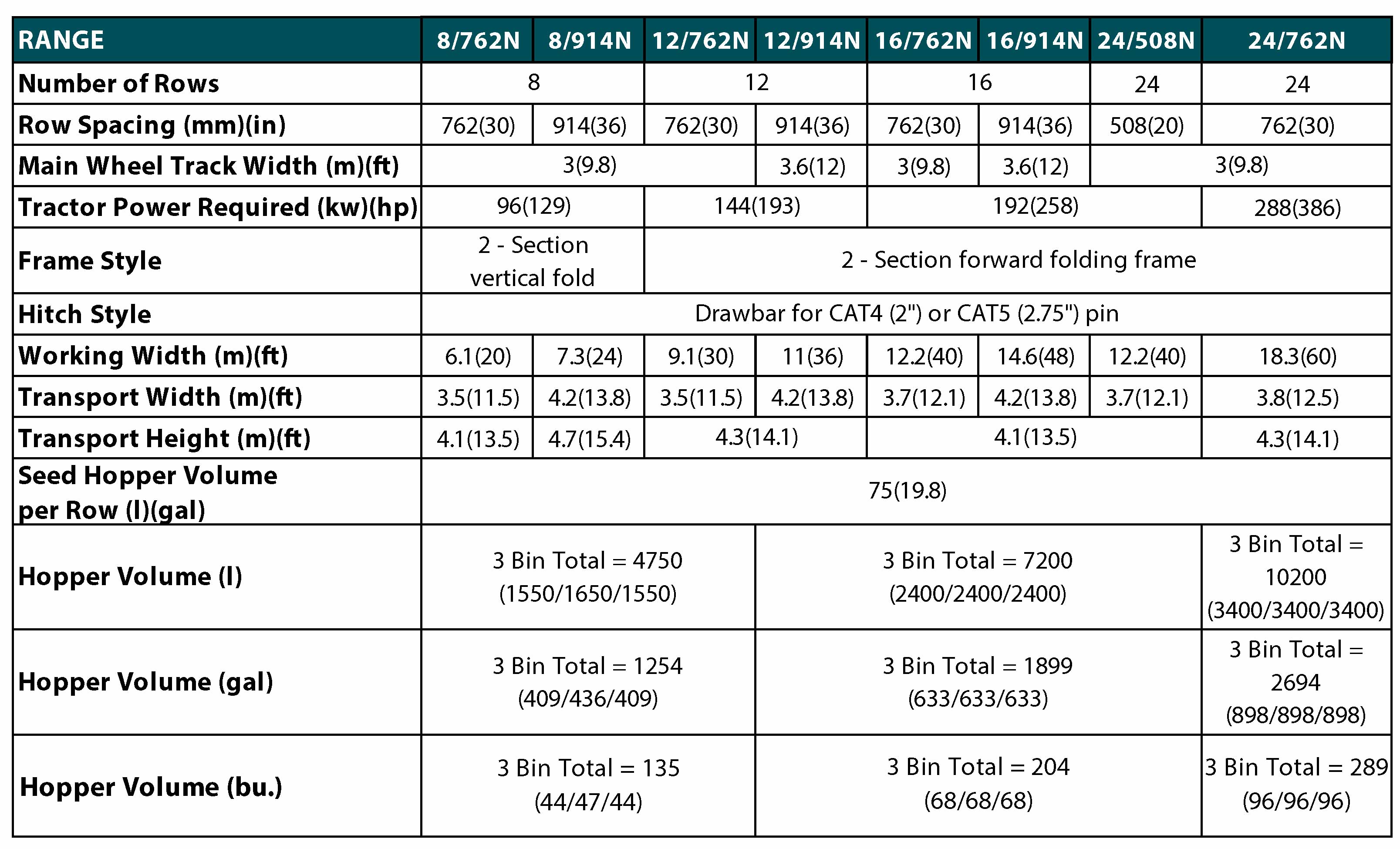

South Africa Product Range Specifications
*Specifications for planters delivered within South Africa
Seeds: corn, sunflower, soybeans, sugar beets etc.
