Air Carts
- Options for Tow-Between and Tow-Behind.
- Available in 12,000L (340 bu), 16,000L (454 bu), & 22,000L (624 bu) capacities.
- Dry and/or Liquid Fertilizer and Seed Delivery for every application
The EQUALIZER Air Cart and Tine Seeder(Drill) can be configured with up to five dry and/or liquid tanks and a small-seed tank. Each of those products can be accurately metered with variable rate and section control technology. Dry Fertilizer on the Air Cart can be delivered to the Seed Run, Fertilizer Run or both to ensure input flexibility and optimum capacity.
Air Cart Benefits
- Robust chassis with balanced weight distribution to effectively manage drawbar load on the tractor.
- Individual tank scales for precise monitoring and optimal application control.
- Fully hydraulic auger with remote-controlled movement for convenient operation.
- Hydraulic drive metering system compatible with a wide range of rate controllers.
- 3m (120") wheel track equipped with large single tyres, designed to integrate seamlessly with most Controlled Traffic Farming (CTF) systems.
-

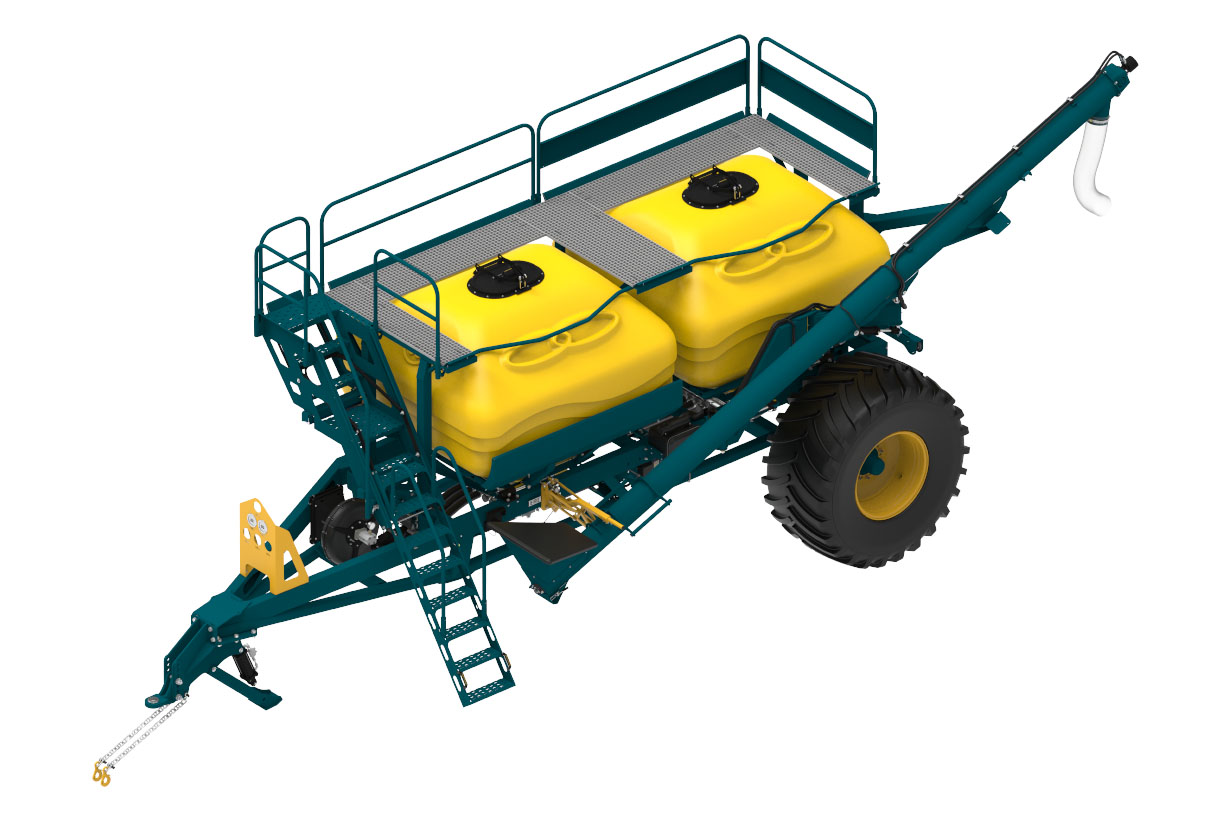

12000M2 - Tow Between
-

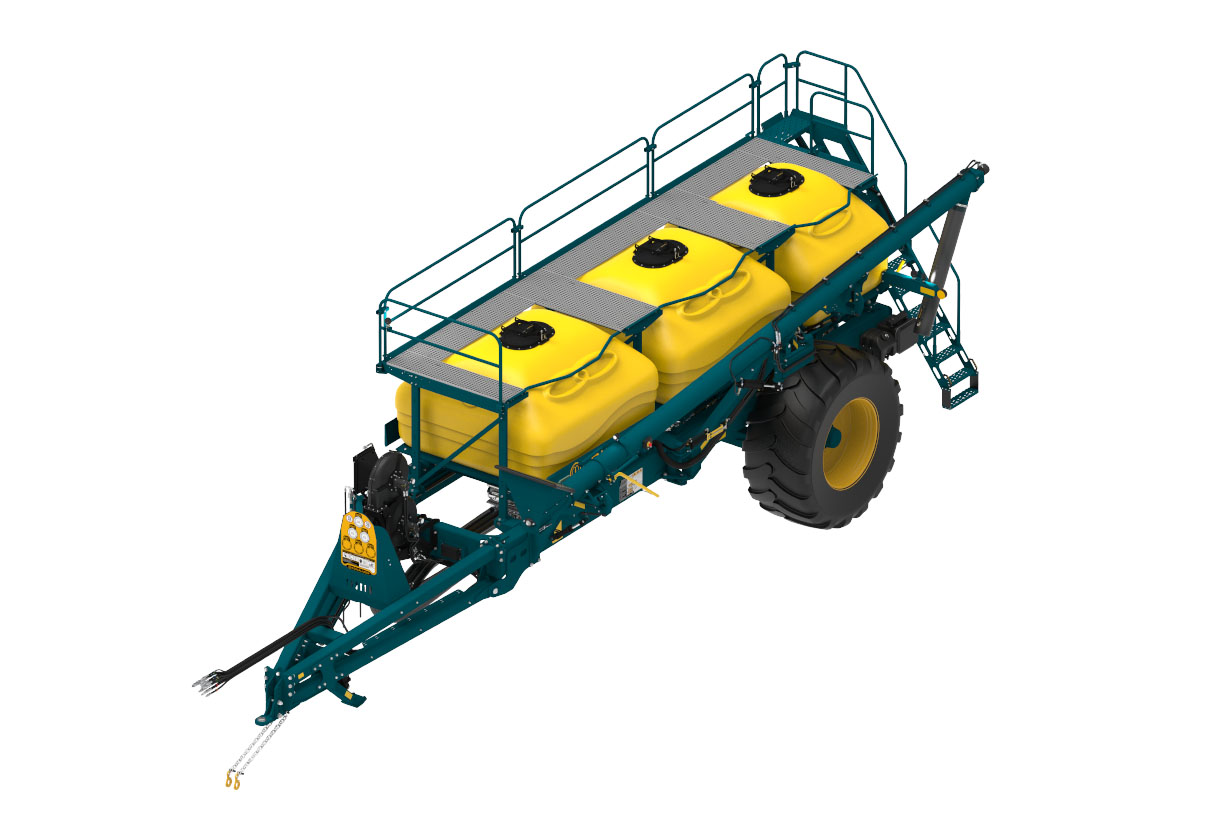

16000M3 - Tow Between
-

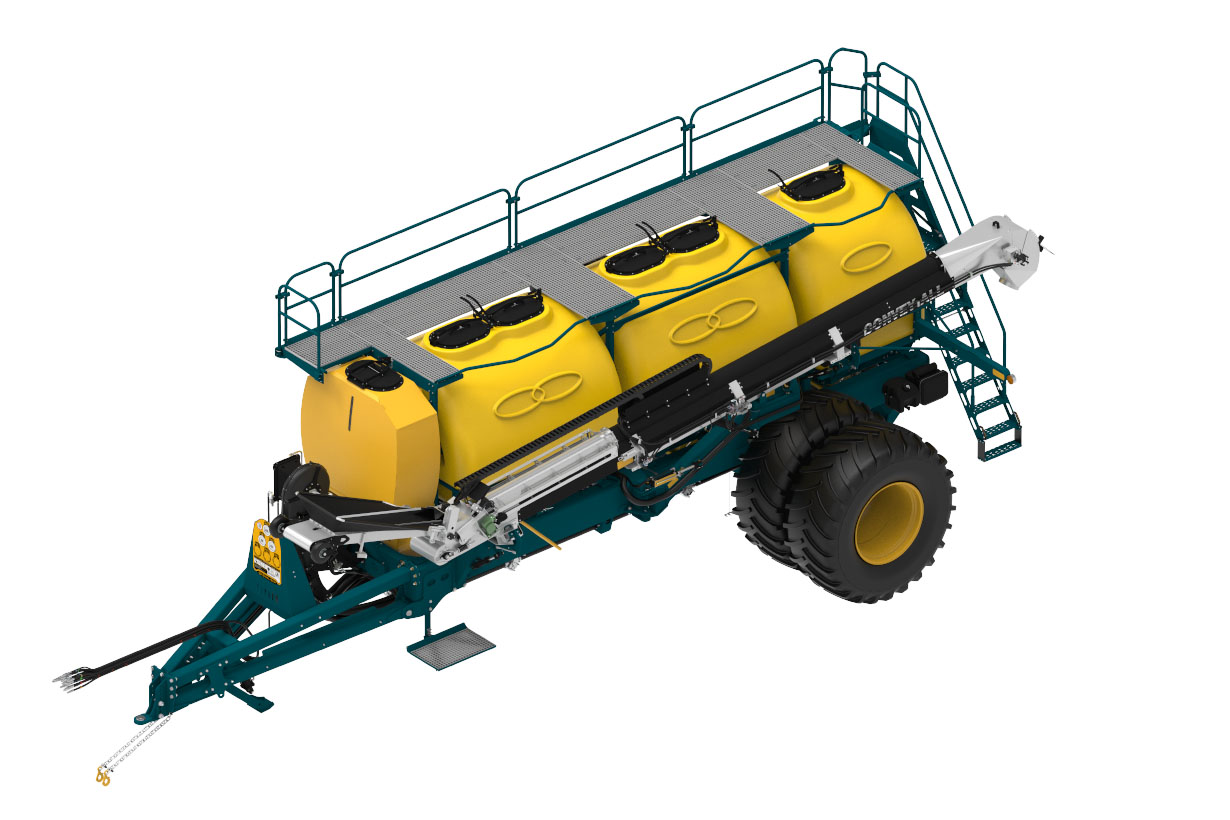

22000M3 - Tow Between
-

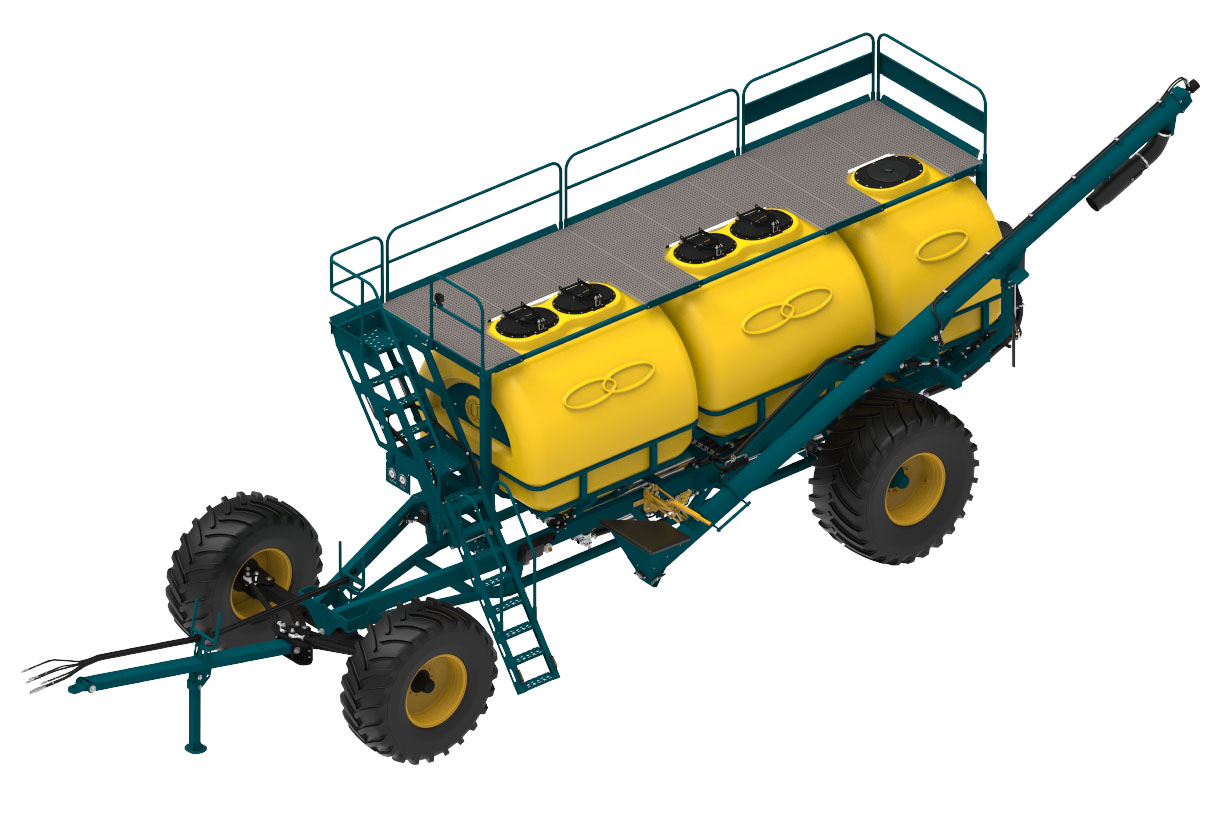

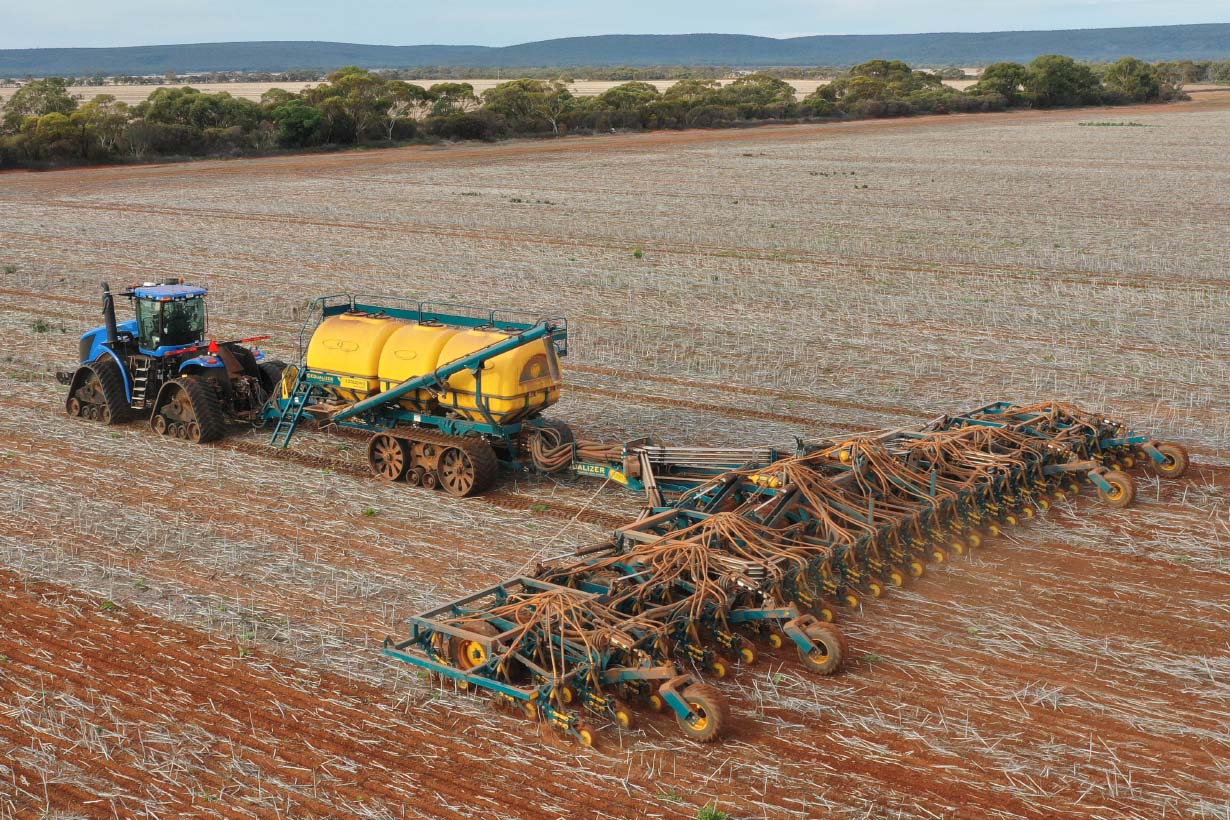

22000R3 - Tow Behind

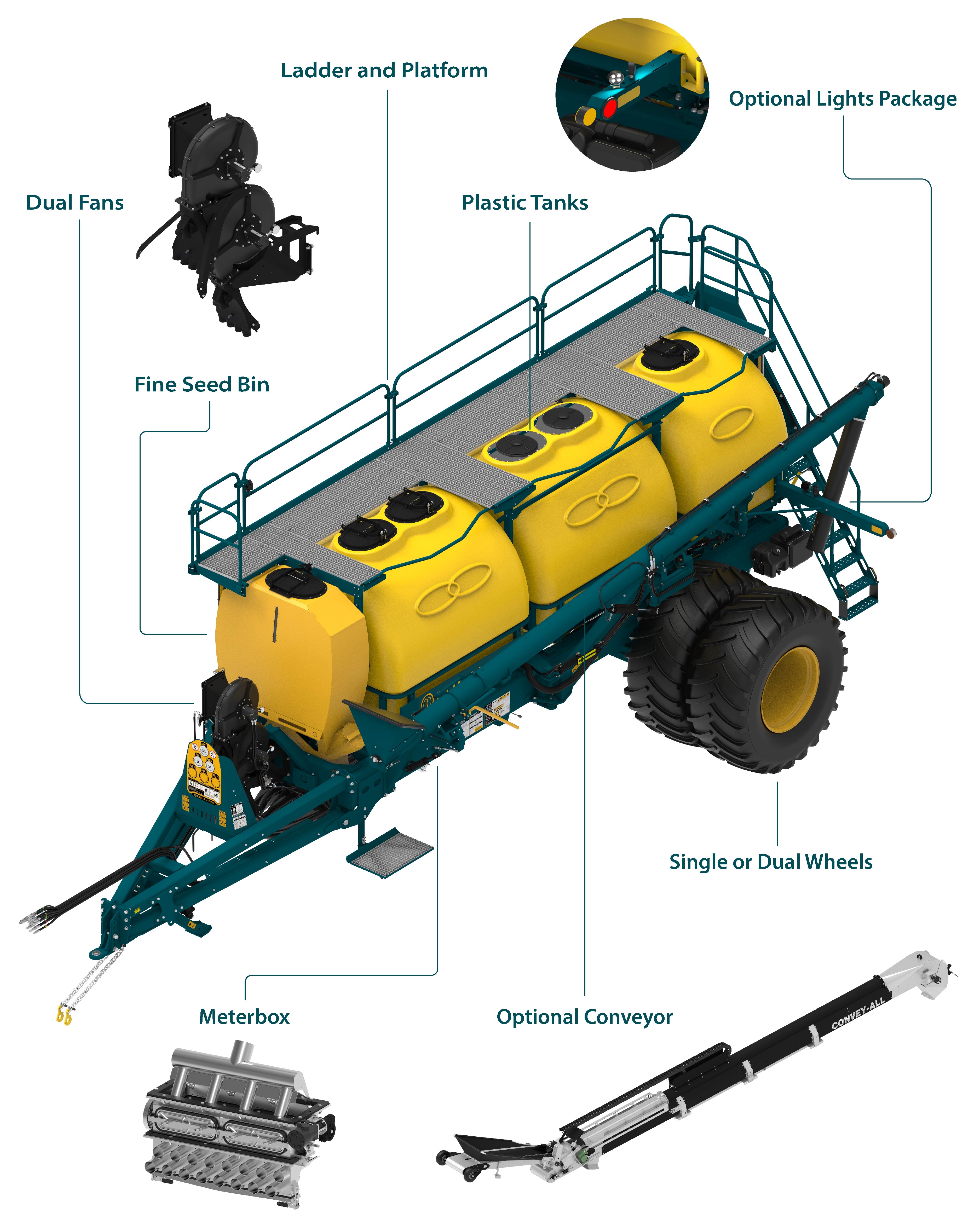

The Air Cart
Standard Features

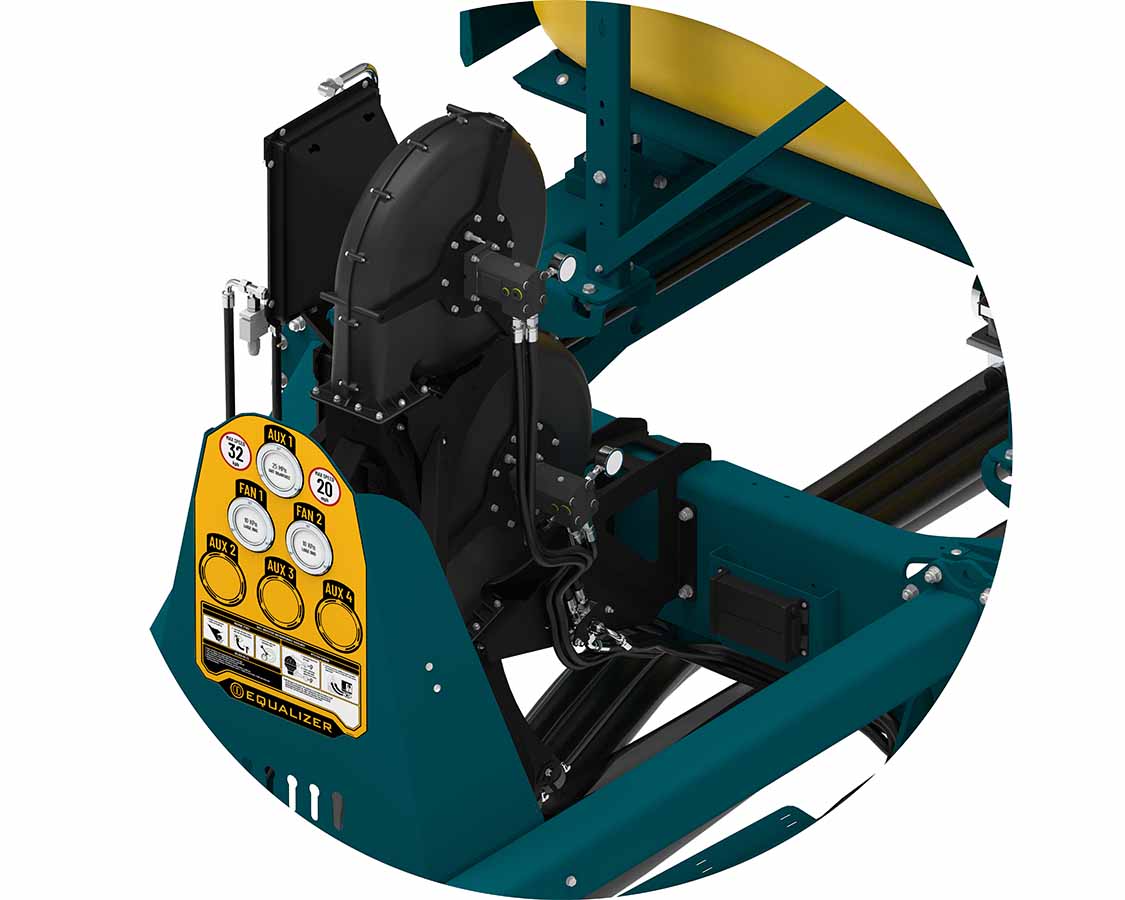

- High-performance centrifugal fan with low oil flow demand (50 L/min, 13.2 gal/min)
- Single or dual fan configuration
- Second fan for double-shoot distribution

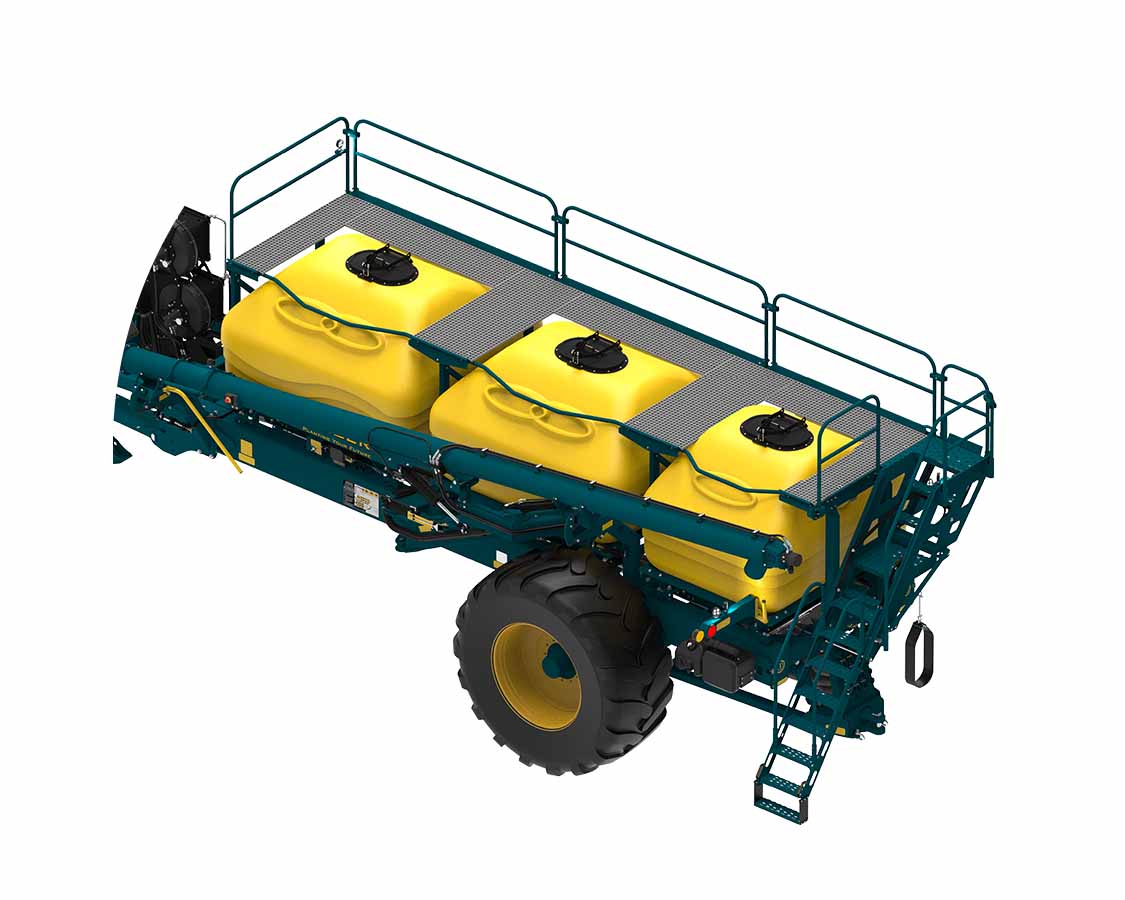

Safe, sturdy, and comfortable. A platform ladder designed for easy access to all bins.

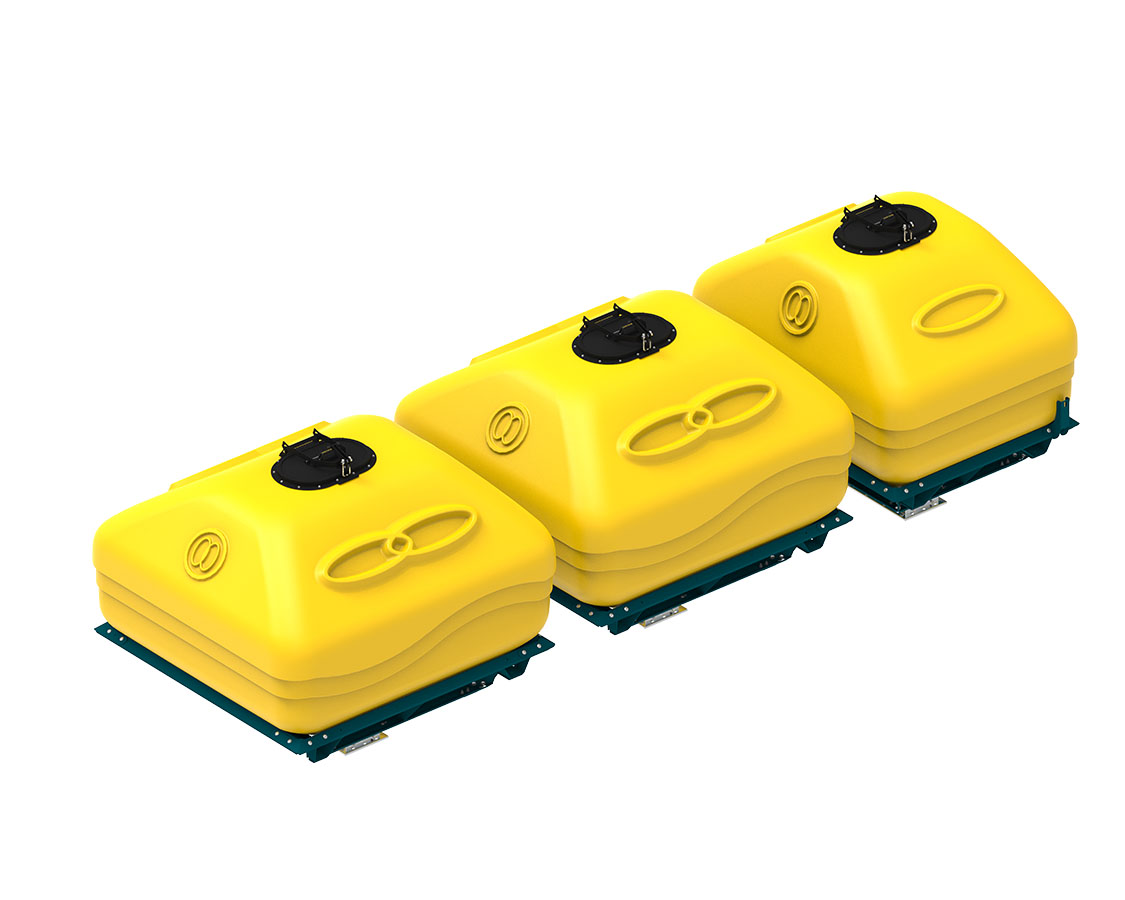

Durable Plastic Tanks
- 8,000 L (230 bu), 6,000 L (170 bu), and 4,000 L (114 bu) bins
- 6,000 L (1,600 gal) and 4,000 L (1,050 gal) bins can accommodate liquid product
- Optional 1,800 L (475 gal) fine seed bin

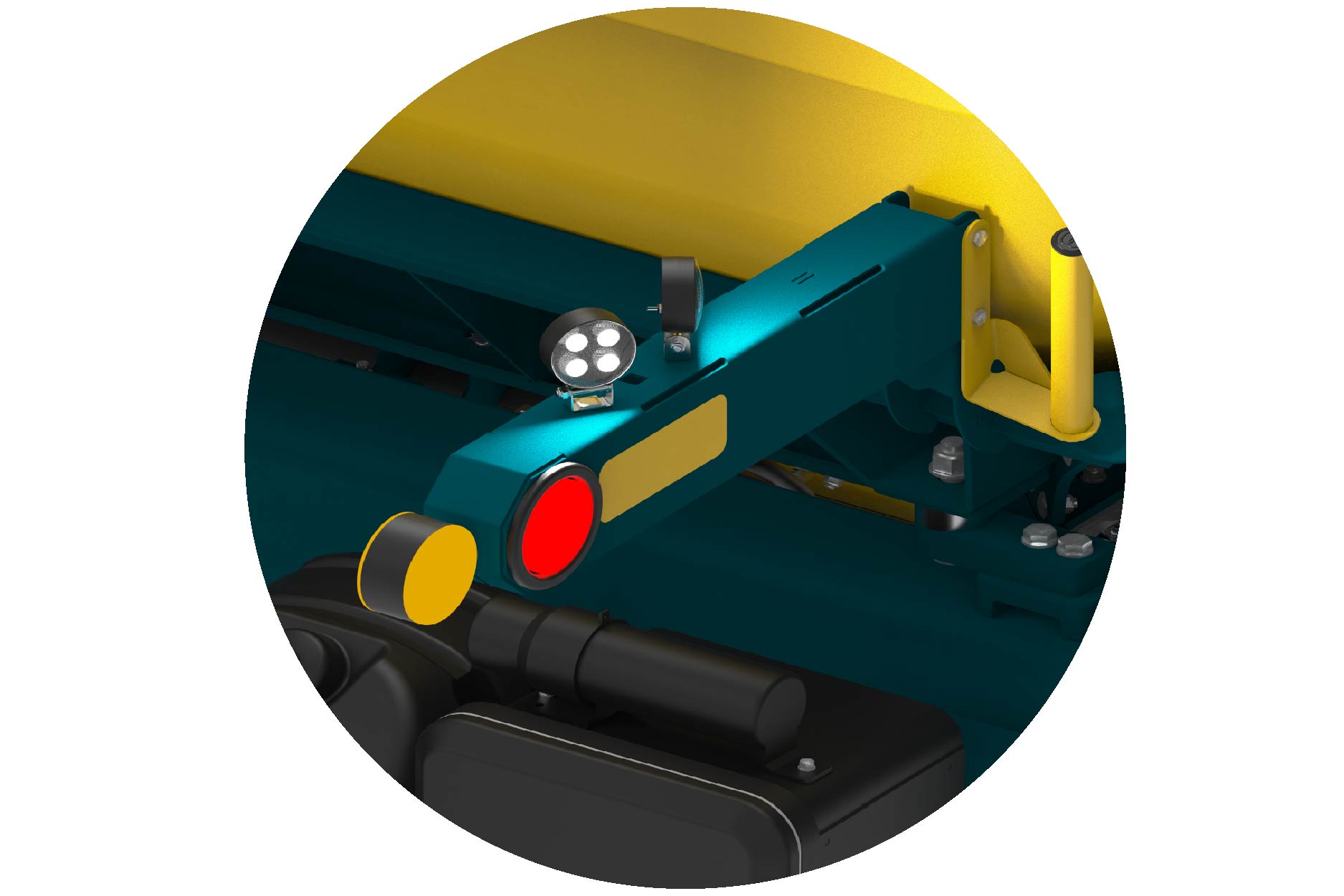

Lighting package designed to illuminate the planter for optimal visibility.

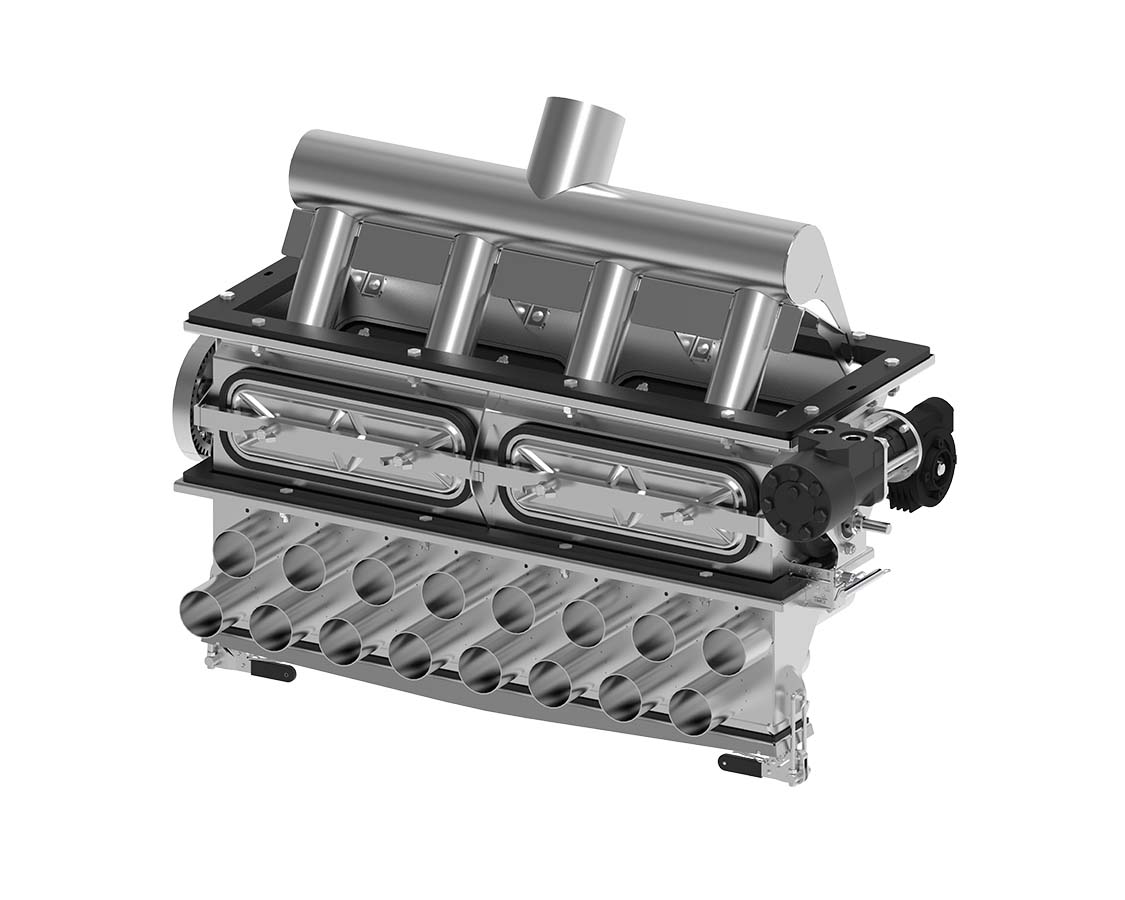

Stainless Steel Meterbox
- Self-cleaning metering units for consistent product delivery.
- Low-maintenance metering unit, no lubrication points.
- Individual 63 mm (2.5”) air lines to each section.
- Optional dual-shoot mixer with centrifugal fan meterbox attachment.

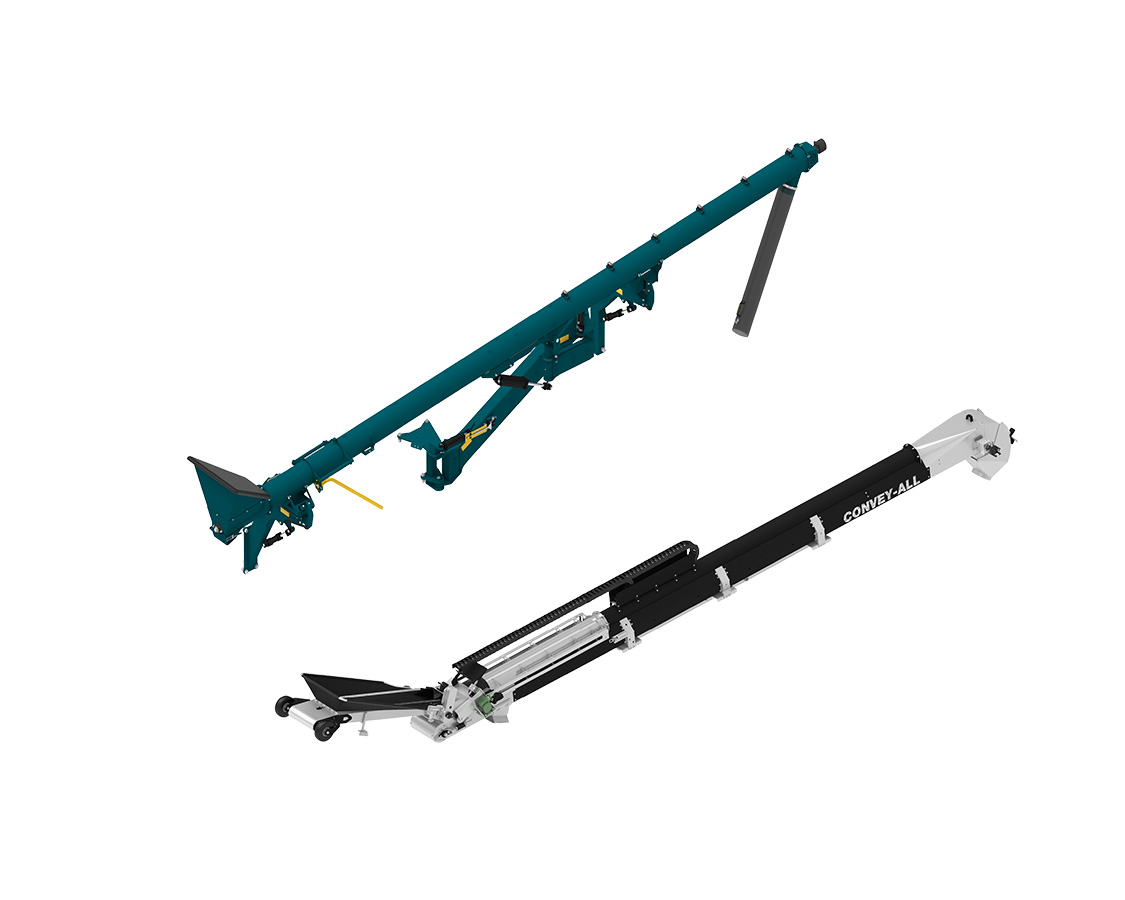

Effortlessly loading of seed or fertilizer with an auger or conveyor, featuring a hydraulically operated swing arm and easy-to-use remote control.

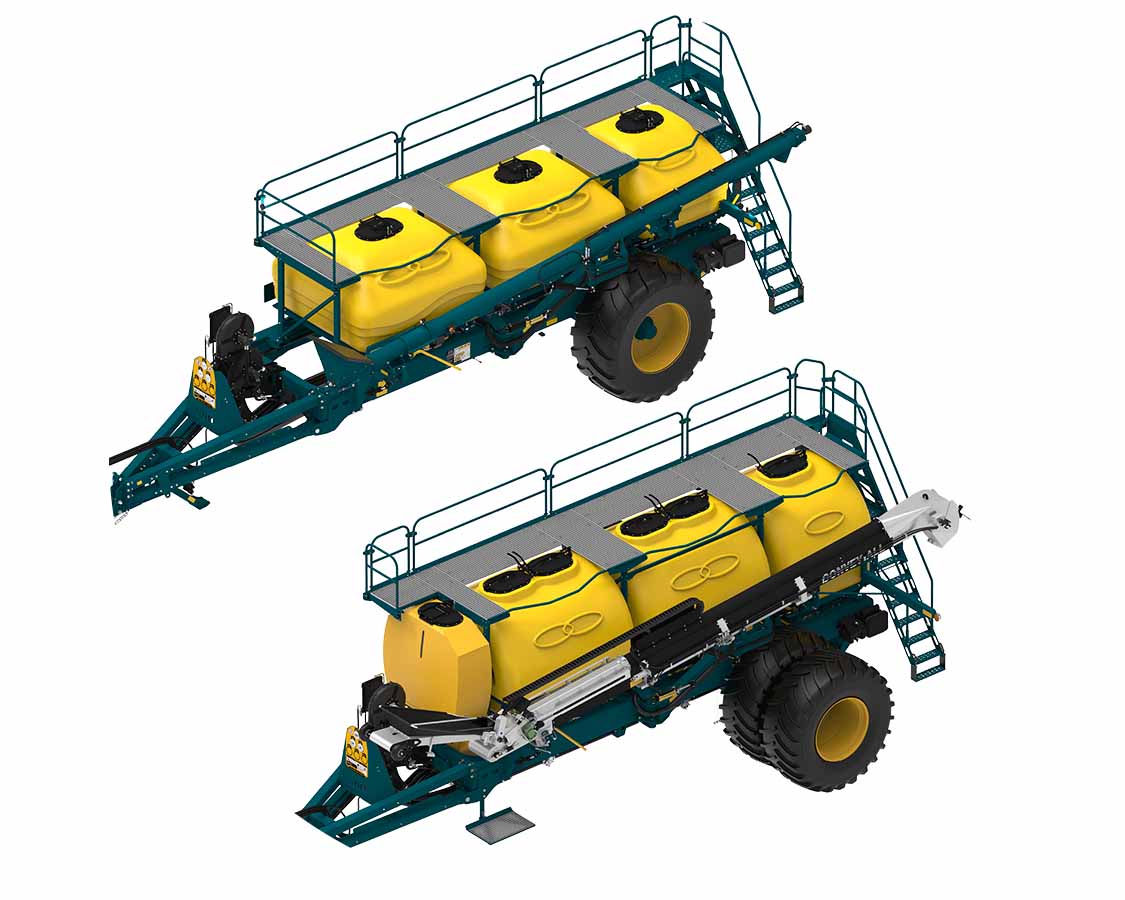

Single or dual wheels available for improved flotation on all terrains.

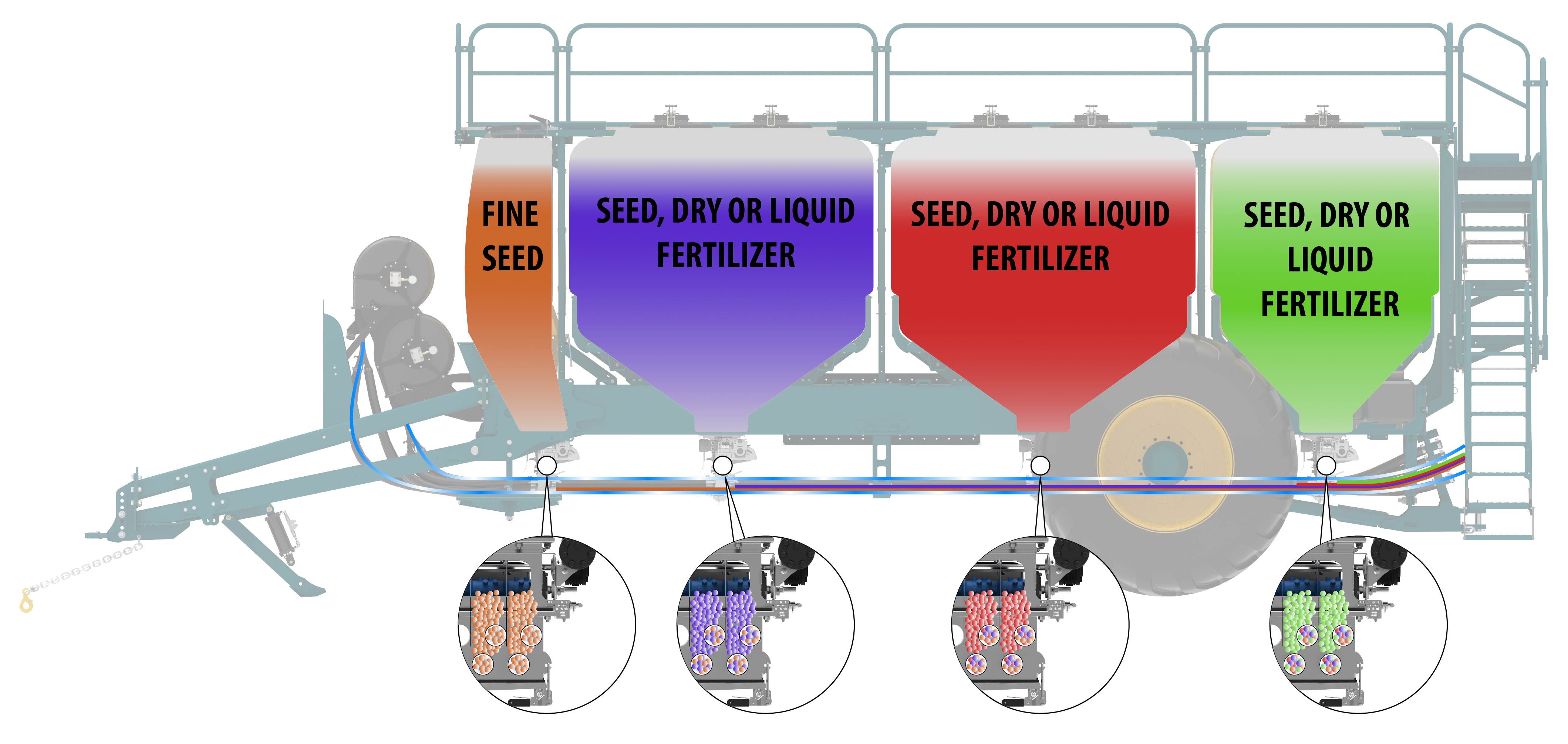

Seed & Fertilizer Distribution

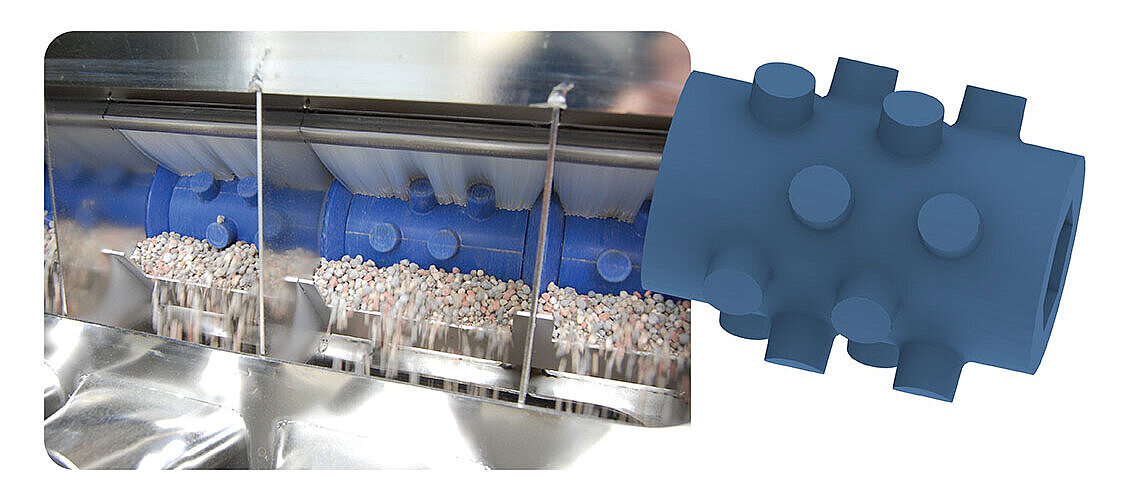

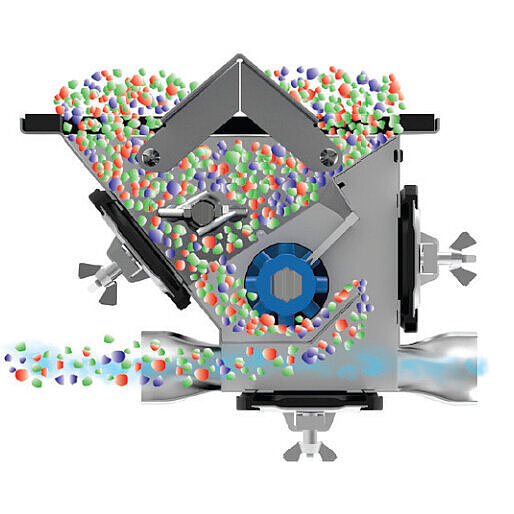

Granular Fertilizer Meterbox
- Stainless steel with self-cleaning poly meter roller
- Accurate, versatile and simple with effortless calibration
- One metering roller for all Fertilizer & Seed types and sizes
No roller changes required
Stainless steel metering units with individual line metering. This means each divider head has its own individual meter roller and there is only one divider head between the row unit and the metering roller which ensures maximum accuracy with an air seeder that eliminates the possibility of variation between sections.

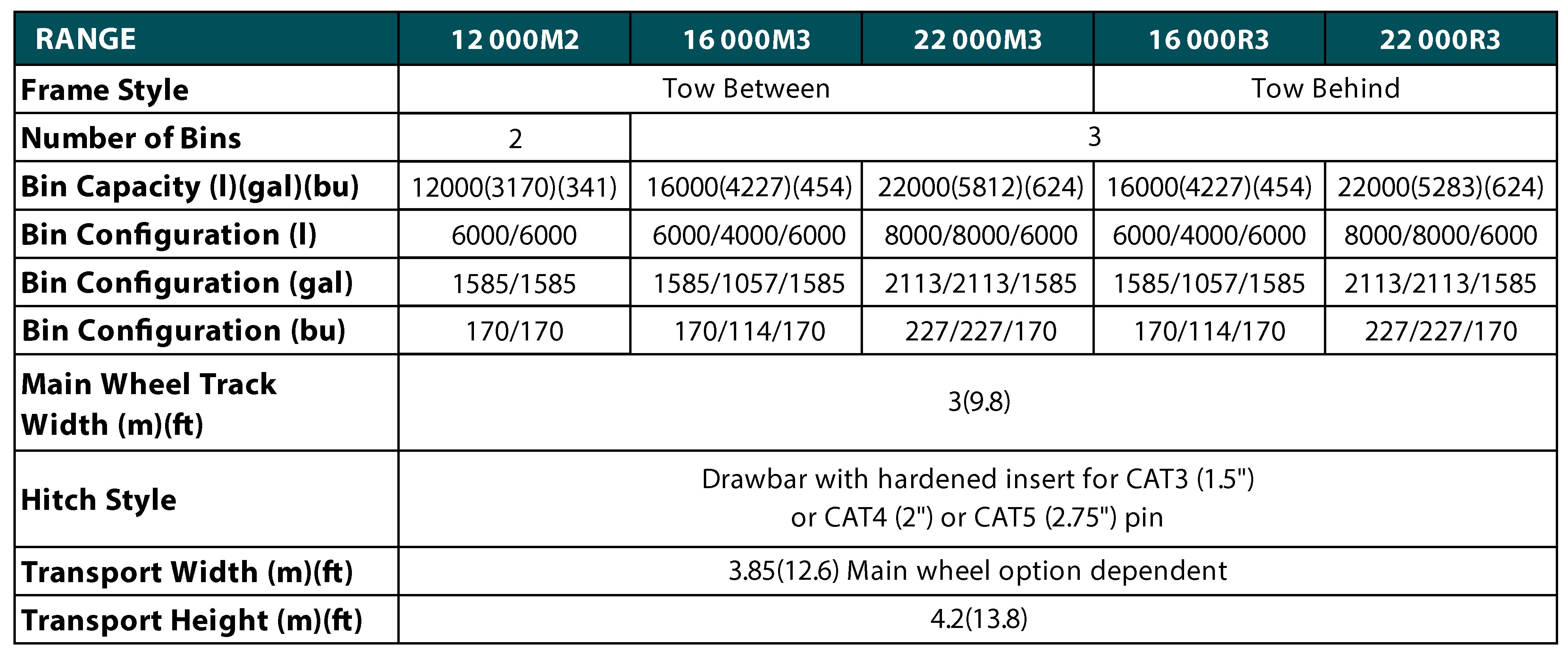

Product Range Specifications
